松图晶振,5032石英晶振,SXT53212BB38-37.400M,6G低成本晶振
频率：37.4MHz
尺寸：5.0×3.2mm
松图晶振,5032石英晶振,SXT53212BB38-37.400M,6G低成本晶振,松图晶振,SXT532无源晶振,5032石英晶振,SXT53212BB38-37.400M晶振,石英晶体谐振器,频率37.4MHz,负载12pF,频率偏差30ppm,工作温度-30~85°C,低老化晶振,高可靠性晶振,6G低成本晶振,通信设备晶振,测试与测量设备晶振,无线路由器晶振.
订购热线：0755-27838351
松图晶振,5032石英晶振,SXT53212BB38-37.400M,6G低成本晶振,松图晶振,SXT532无源晶振,5032石英晶振,SXT53212BB38-37.400M晶振,石英晶体谐振器,频率37.4MHz,负载12pF,频率偏差30ppm,工作温度-30~85°C,低老化晶振,高可靠性晶振,6G低成本晶振,通信设备晶振,测试与测量设备晶振,无线路由器晶振.
松图晶振,5032石英晶振,SXT53212BB38-37.400M,6G低成本晶振特点：
•±10 ppm /±10 ppm(公差/稳定)可用
•超小型封装
•AT-Cut基本原理
•磁带和卷轴

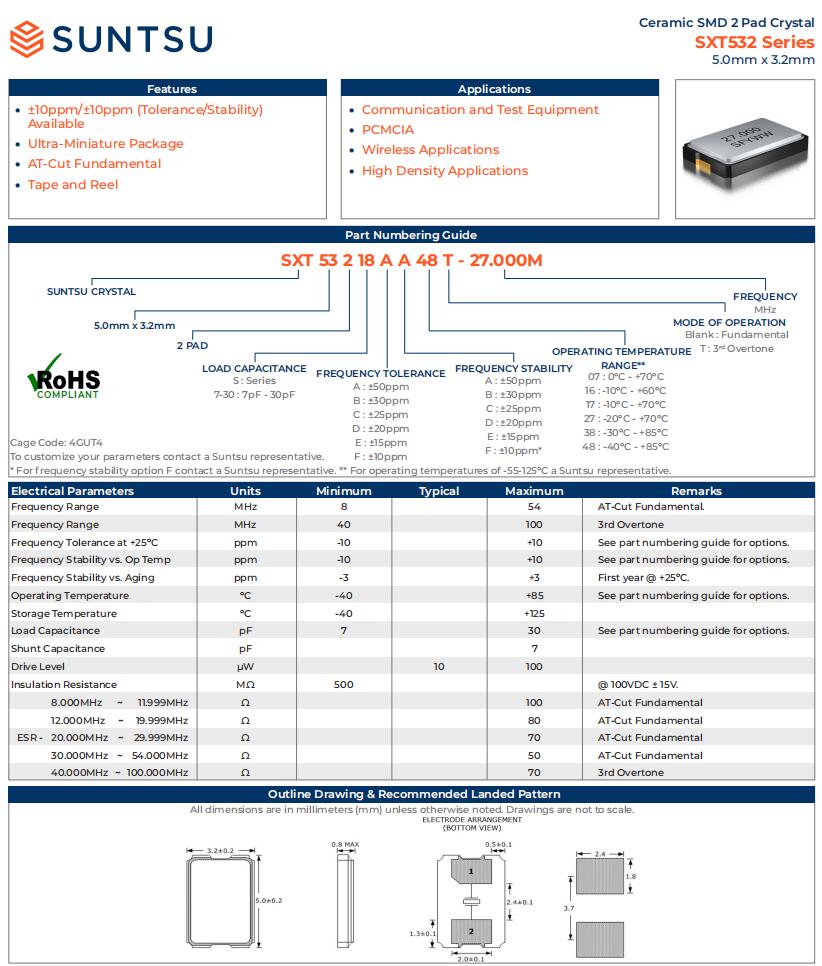

松图晶振,5032石英晶振,SXT53212BB38-37.400M,6G低成本晶振参数图
| 项目 | 符号 | 数值 |
| 频率 | f0 | 37.4MHz |
| 频率公差 | △ f/f0 | ±30ppm |
| 温度稳定性 | TC | ±30ppm |
| 并联电容 | CO | 7pF Max |
| 负载电容 | CL | 12pF |
| 工作温度 | TOPR | -30℃～＋85℃ |
| 保存温度 | TSTR | －40℃～＋125℃ |
| 串联阻力 | R1 | 50Ω Max |
| 驱动级别 | DL | 100μW Max |
| 老化（第一年） | △ f/f0 | ±3ppm Max. |
松图晶振,5032石英晶振,SXT53212BB38-37.400M,6G低成本晶振尺寸图
| SUNTSU晶振编码 | 尺寸 | 负载 | 频率公差 | 频率稳定度 | 工作温度 | 频率 |
| SXT22410AA07-12.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 12.000M |
| SXT22410AA07-12.288M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 12.288M |
| SXT22410AA07-13.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 13.000M |
| SXT22410AA07-13.560M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 13.560M |
| SXT22410AA07-14.31818M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 14.31818M |
| SXT22410AA07-14.7456M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 14.7456M |
| SXT22410AA07-16.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 16.000M |
| SXT22410AA07-16.384M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 16.384M |
| SXT22410AA07-18.432M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 18.432M |
| SXT22410AA07-19.200M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 19.200M |
| SXT22410AA07-20.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 20.000M |
| SXT22410AA07-22.1184M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 22.1184M |
| SXT22410AA07-24.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 24.000M |
| SXT22410AA07-24.576M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 24.576M |
| SXT22410AA07-25.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 25.000M |
| SXT22410AA07-26.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 26.000M |
| SXT22410AA07-27.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 27.000M |
| SXT22410AA07-27.120M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 27.120M |
| SXT22410AA07-30.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 30.000M |
| SXT22410AA07-32.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 32.000M |
| SXT22410AA07-37.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 37.400M |
| SXT22410AA07-38.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 38.400M |
| SXT22410AA07-40.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 40.000M |
| SXT22410AA07-48.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 48.000M |
| SXT22410AA07-50.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 50.000M |
| SXT22410AA16-12.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 12.000M |
| SXT22410AA16-12.288M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 12.288M |
| SXT22410AA16-13.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 13.000M |
| SXT22410AA16-13.560M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 13.560M |
| SXT22410AA16-14.31818M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 14.31818M |
| SXT22410AA16-14.7456M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 14.7456M |
| SXT22410AA16-16.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 16.000M |
| SXT22410AA16-16.384M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 16.384M |
| SXT22410AA16-18.432M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 18.432M |
| SXT22410AA16-19.200M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 19.200M |
| SXT22410AA16-20.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 20.000M |
| SXT22410AA16-22.1184M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 22.1184M |
| SXT22410AA16-24.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 24.000M |
| SXT22410AA16-24.576M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 24.576M |
| SXT22410AA16-25.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +60℃ | 25.000M |
| SXT22410AA16-26.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +60℃ | 26.000M |
| SXT22410AA16-27.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +60℃ | 27.000M |
| SXT22410AA16-27.120M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +60℃ | 27.120M |
| SXT22410AA16-30.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +60℃ | 30.000M |
| SXT22410AA16-32.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +60℃ | 32.000M |
| SXT22410AA16-37.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +60℃ | 37.400M |
| SXT22410AA16-38.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +60℃ | 38.400M |
| SXT22410AA16-40.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +60℃ | 40.000M |
| SXT22410AA16-48.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +60℃ | 48.000M |
| SXT22410AA16-50.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +60℃ | 50.000M |
| SXT22410AA17-12.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 12.000M |
| SXT22410AA17-12.288M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 12.288M |
| SXT22410AA17-13.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 13.000M |
| SXT22410AA17-13.560M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 13.560M |
| SXT22410AA17-14.31818M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 14.31818M |
| SXT22410AA17-14.7456M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 14.7456M |
| SXT22410AA17-16.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 16.000M |
| SXT22410AA17-16.384M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 16.384M |
| SXT22410AA17-18.432M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 18.432M |
| SXT22410AA17-19.200M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 19.200M |
| SXT22410AA17-20.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 20.000M |
| SXT22410AA17-22.1184M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 22.1184M |
| SXT22410AA17-24.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 24.000M |
| SXT22410AA17-24.576M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 24.576M |
| SXT22410AA17-25.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 25.000M |
| SXT22410AA17-26.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 26.000M |
| SXT22410AA17-27.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 27.000M |
| SXT22410AA17-27.120M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 27.120M |
| SXT22410AA17-30.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 30.000M |
| SXT22410AA17-32.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 32.000M |
| SXT22410AA17-37.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 37.400M |
| SXT22410AA17-38.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 38.400M |
| SXT22410AA17-40.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 40.000M |
| SXT22410AA17-48.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 48.000M |
| SXT22410AA17-50.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 50.000M |
| SXT22410AA27-12.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 12.000M |
| SXT22410AA27-12.288M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 12.288M |
| SXT22410AA27-13.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 13.000M |
| SXT22410AA27-13.560M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 13.560M |
| SXT22410AA27-14.31818M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 14.31818M |
| SXT22410AA27-14.7456M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 14.7456M |
| SXT22410AA27-16.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 16.000M |
| SXT22410AA27-16.384M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 16.384M |
| SXT22410AA27-18.432M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 18.432M |
| SXT22410AA27-19.200M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 19.200M |
| SXT22410AA27-20.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 20.000M |
| SXT22410AA27-22.1184M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 22.1184M |
| SXT22410AA27-24.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 24.000M |
| SXT22410AA27-24.576M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 24.576M |
| SXT22410AA27-25.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 25.000M |
| SXT22410AA27-26.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 26.000M |
| SXT22410AA27-27.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 27.000M |
| SXT22410AA27-27.120M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 27.120M |
| SXT22410AA27-30.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 30.000M |
| SXT22410AA27-32.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 32.000M |
| SXT22410AA27-37.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 37.400M |
| SXT22410AA27-38.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 38.400M |
| SXT22410AA27-40.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 40.000M |
| SXT22410AA27-48.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 48.000M |
| SXT22410AA27-50.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 50.000M |
| SXT22410AA38-12.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 12.000M |
| SXT22410AA38-12.288M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 12.288M |
| SXT22410AA38-13.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 13.000M |
| SXT22410AA38-13.560M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 13.560M |
| SXT22410AA38-14.31818M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 14.31818M |
| SXT22410AA38-14.7456M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 14.7456M |
| SXT22410AA38-16.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 16.000M |
| SXT22410AA38-16.384M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 16.384M |
| SXT22410AA38-18.432M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 18.432M |
| SXT22410AA38-19.200M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 19.200M |
| SXT22410AA38-20.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 20.000M |
| SXT22410AA38-22.1184M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 22.1184M |
| SXT22410AA38-24.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 24.000M |
| SXT22410AA38-24.576M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 24.576M |
| SXT22410AA38-25.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 25.000M |
| SXT22410AA38-26.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 26.000M |
| SXT22410AA38-27.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 27.000M |
| SXT22410AA38-27.120M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 27.120M |
| SXT22410AA38-30.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 30.000M |
| SXT22410AA38-32.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 32.000M |
| SXT22410AA38-37.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 37.400M |
| SXT22410AA38-38.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 38.400M |
| SXT22410AA38-40.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 40.000M |
| SXT22410AA38-48.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 48.000M |
| SXT22410AA38-50.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 50.000M |
| SXT22410AA48-12.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40℃ - +85℃ | 12.000M |
| SXT22410AA48-12.288M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40℃ - +85℃ | 12.288M |
| SXT22410AA48-13.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40℃ - +85℃ | 13.000M |
| SXT22410AA48-13.560M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40℃ - +85℃ | 13.560M |
| SXT22410AA48-14.31818M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40℃ - +85℃ | 14.31818M |
| SXT22410AA48-14.7456M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40℃ - +85℃ | 14.7456M |
| SXT22410AA48-16.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40℃ - +85℃ | 16.000M |
| SXT22410AA48-16.384M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40℃ - +85℃ | 16.384M |
| SXT22410AA48-18.432M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40℃ - +85℃ | 18.432M |
| SXT22410AA48-19.200M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40℃ - +85℃ | 19.200M |
| SXT22410AA48-20.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40℃ - +85℃ | 20.000M |
| SXT22410AA48-22.1184M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40℃ - +85℃ | 22.1184M |
| SXT22410AA48-24.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40℃ - +85℃ | 24.000M |
| SXT22410AA48-24.576M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40℃ - +85℃ | 24.576M |
| SXT22410AA48-25.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 25.000M |
| SXT22410AA48-26.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 26.000M |
| SXT22410AA48-27.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 27.000M |
| SXT22410AA48-27.120M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 27.120M |
| SXT22410AA48-30.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 30.000M |
| SXT22410AA48-32.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 32.000M |
| SXT22410AA48-37.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 37.400M |
| SXT22410AA48-38.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 38.400M |
| SXT22410AA48-40.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 40.000M |
| SXT22410AA48-48.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 48.000M |
| SXT22410AA48-50.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 50.000M |
| SXT22410BA07-12.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 12.000M |
| SXT22410BA07-12.288M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 12.288M |
| SXT22410BA07-13.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 13.000M |
| SXT22410BA07-13.560M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 13.560M |
| SXT22410BA07-14.31818M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 14.31818M |
| SXT22410BA07-14.7456M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 14.7456M |
| SXT22410BA07-16.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 16.000M |
| SXT22410BA07-16.384M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 16.384M |
| SXT22410BA07-18.432M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 18.432M |
| SXT22410BA07-19.200M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 19.200M |
| SXT22410BA07-20.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 20.000M |
| SXT22410BA07-22.1184M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 22.1184M |
| SXT22410BA07-24.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 24.000M |
| SXT22410BA07-24.576M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 24.576M |
| SXT22410BA07-25.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 25.000M |
| SXT22410BA07-26.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 26.000M |
| SXT22410BA07-27.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 27.000M |
| SXT22410BA07-27.120M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 27.120M |
| SXT22410BA07-30.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 30.000M |
| SXT22410BA07-32.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 32.000M |
| SXT22410BA07-38.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 38.400M |
| SXT22410BA07-40.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 40.000M |
| SXT22410BA07-48.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 48.000M |
| SXT22410BA07-50.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 50.000M |
精工富士晶振-康华尔正规渠道指定供应商
服务热线：0755-27838351
手机联系：138-2330-0879
Q Q联系：632862232
邮 箱：konuaer@163.com
地 址：广东深圳市宝安区宝安大道东95号浙商大厦1905
采购：松图晶振,5032石英晶振,SXT53212BB38-37.400M,6G低成本晶振
- *联系人：
- *手机：
- 公司名称：
- 邮箱：
- *采购意向：
-
*验证码：
跟此产品相关的产品 / Related Products
- 瑞康晶振,2520晶振,RSX-10晶振
- 贴片石英晶体,体积小,焊接可采用自动贴片系统,产品本身小型,表面贴片晶振,特别适用于有小型化要求的电子数码产品市场领域,因产品小型,薄型优势,耐环境特性,包括耐高温,耐冲击性等,在移动通信领域得到了广泛的应用,晶振产品本身可发挥优良的电气特性,满足无铅焊接的高温回流温度曲线要求。
- 百利通亚陶晶振,石英晶振,FYQ晶振
- 贴片石英晶体,体积小,焊接可采用自动贴片系统,产品本身小型,表面贴片晶振,特别适用于有小型化要求的电子数码产品市场领域,因产品小型,薄型优势,耐环境特性,包括耐高温,耐冲击性等,在移动通信领域得到了广泛的应用,晶振产品本身可发挥优良的电气特性,满足无铅焊接的高温回流温度曲线要求.
- ConnorWinfield晶振CS-018,CS-018-114.285M小体积3225晶振
- ConnorWinfield晶振CS-018,CS-018-114.285M小体积3225晶振，ConnorWinfield康纳温菲尔德晶振，美国进口晶振，CS-018石英贴片晶振是一款小体积晶振，外形尺寸3.2x2.5mm贴片晶振，四脚贴片晶振，无源晶振，CS-034-040.0M石英晶振，石英晶体谐振器，无铅环保晶振，表面安装在AT切割的第三泛音晶体。它们在许多频率合成器和PLL应用中被用作参考晶体。频率为：114.285MHz，频率校准：±20ppm，频率稳定性：CS-018：±100ppm，温度范围：-40至85°C，表面安装包装带和卷轴包装符合RoHS/无铅，应用于移动通讯设备，无线网络，蓝牙晶振，汽车电子，导航仪，GPS定位，物联网，平板电脑，医疗设备，数码电子等应用。
康华尔产品中心
Product Center
联系康华尔Contact us
咨询热线
0755-27838351
电话：0755-27838351
手机：138 2330 0879
QQ：632862232
邮箱： konuaer@163.com
地址：广东深圳市宝安区宝安大道东95号浙商大厦1905
康华尔公众号
