爱普生利用独特的核心技术开发适合用于汽车充电枪的有源晶振X1G0044010011
爱普生利用独特的核心技术开发适合用于汽车充电枪的有源晶振X1G0044010011,独特的创新能力是爱普生晶振公司成功的砝码,公司自成立以来一直专注于研发设计生产高性能高品质的有源贴片晶振产品,并以高于用户满意度为最大的目标,敢于不断贡献自我的精神,使得爱普生公司在行业收获满满,并将自身的创新能力展示的淋漓尽致,与此同时收获无数的好评与称赞,为爱普生公司未来发展打下极好的基础。
欧美进口晶振编码 | Model | Frequency | Frequency stability | LxWxH | Output Wave | Supply Voltage | VC Range |
X1G0028610002 | VG-4231CB | 54.000000 MHz | JGCZ | 5.00 x 3.20 x 1.20 mm | CMOS | 3.135 to 3.465 V | 1.65+/-1.5V |
X1G0028610003 | VG-4231CB | 57.272727 MHz | JGCZ | 5.00 x 3.20 x 1.20 mm | CMOS | 3.135 to 3.465 V | 1.65+/-1.5V |
X1G0028610004 | VG-4231CB | 56.750000 MHz | JGCZ | 5.00 x 3.20 x 1.20 mm | CMOS | 3.135 to 3.465 V | 1.65+/-1.5V |
X1G0028610005 | VG-4231CB | 57.000000 MHz | JGCZ | 5.00 x 3.20 x 1.20 mm | CMOS | 3.135 to 3.465 V | 1.65+/-1.5V |
X1G0028610007 | VG-4231CB | 27.000000 MHz | GGCZ | 5.00 x 3.20 x 1.20 mm | CMOS | 3.135 to 3.465 V | 1.65+/-1.5V |
X1G0028610008 | VG-4231CB | 16.111888 MHz | JGCZ | 5.00 x 3.20 x 1.20 mm | CMOS | 3.135 to 3.465 V | 1.65+/-1.5V |
X1G0028610009 | VG-4231CB | 24.545454 MHz | JGCZ | 5.00 x 3.20 x 1.20 mm | CMOS | 3.135 to 3.465 V | 1.65+/-1.5V |
X1G0028610010 | VG-4231CB | 16.128000 MHz | JGCZ | 5.00 x 3.20 x 1.20 mm | CMOS | 3.135 to 3.465 V | 1.65+/-1.5V |
X1G0028610011 | VG-4231CB | 24.570000 MHz | JGCZ | 5.00 x 3.20 x 1.20 mm | CMOS | 3.135 to 3.465 V | 1.65+/-1.5V |
X1G0028610013 | VG-4231CB | 10.000000 MHz | GGCZ | 5.00 x 3.20 x 1.20 mm | CMOS | 3.135 to 3.465 V | 1.65+/-1.5V |
X1G0028610024 | VG-4231CB | 79.075000 MHz | GGCZ | 5.00 x 3.20 x 1.20 mm | CMOS | 3.135 to 3.465 V | 1.65+/-1.5V |
X1G0028610042 | VG-4231CB | 40.965000 MHz | GGCZ | 5.00 x 3.20 x 1.20 mm | CMOS | 3.135 to 3.465 V | 1.65+/-1.5V |
X1G0028610051 | VG-4231CB | 25.000000 MHz | GGCZ | 5.00 x 3.20 x 1.20 mm | CMOS | 3.135 to 3.465 V | 1.65+/-1.5V |
X1G0036910021 | VG-4512CA | 148.351600 MHz | JHCT | 7.00 x 5.00 x 1.60 mm | LV-PECL | 3.135 to 3.465 V | 1.65+/-1.5V |
X1G0036910022 | VG-4512CA | 148.500000 MHz | JHCT | 7.00 x 5.00 x 1.60 mm | LV-PECL | 3.135 to 3.465 V | 1.65+/-1.5V |
X1G0036910034 | VG-4512CA | 122.880000 MHz | GHCT | 7.00 x 5.00 x 1.60 mm | LV-PECL | 3.135 to 3.465 V | 1.65+/-1.5V |
X1G0036910113 | VG-4512CA | 122.880000 MHz | GGCT | 7.00 x 5.00 x 1.60 mm | LV-PECL | 3.135 to 3.465 V | 1.65+/-1.5V |
X1G0036910114 | VG-4512CA | 125.000000 MHz | JGCT | 7.00 x 5.00 x 1.60 mm | LV-PECL | 3.135 to 3.465 V | 1.65+/-1.5V |
X1G0036910115 | VG-4512CA | 156.250000 MHz | JGCT | 7.00 x 5.00 x 1.60 mm | LV-PECL | 3.135 to 3.465 V | 1.65+/-1.5V |
X1G0036910116 | VG-4512CA | 157.286400 MHz | GGCT | 7.00 x 5.00 x 1.60 mm | LV-PECL | 3.135 to 3.465 V | 1.65+/-1.5V |
X1G0036910134 | VG-4512CA | 153.600000 MHz | GGCT | 7.00 x 5.00 x 1.60 mm | LV-PECL | 3.135 to 3.465 V | 1.65+/-1.5V |
X1G0037710002 | VG-4501CA. | 122.880000 MHz | GGCT | 7.00 x 5.00 x 1.60 mm | CMOS | 3.135 to 3.465 V | 1.65+/-1.65V |
X1G0039210002 | VG-4232CA | 61.440000 MHz | GGC-T | 7.00 x 5.00 x 1.40 mm | CMOS | 3.135 to 3.465 V | 1.65+/-1.65V |
X1G0041411001 | VG-4513CA | 122.880000 MHz | GGCT | 7.00 x 5.00 x 1.60 mm | LV-PECL | 3.135 to 3.465 V | 1.65+/-1.65V |
X1G0041411002 | VG-4513CA | 122.880000 MHz | GFCT | 7.00 x 5.00 x 1.60 mm | LV-PECL | 3.135 to 3.465 V | 1.65+/-1.65V |
X1G0041411004 | VG-4513CA | 153.600000 MHz | GFCT | 7.00 x 5.00 x 1.60 mm | LV-PECL | 3.135 to 3.465 V | 1.65+/-1.65V |
X1G0041411006 | VG-4513CA | 148.351648 MHz | GGCT | 7.00 x 5.00 x 1.60 mm | LV-PECL | 3.135 to 3.465 V | 1.65+/-1.65V |
X1G0041411007 | VG-4513CA | 153.600000 MHz | GGCT | 7.00 x 5.00 x 1.60 mm | LV-PECL | 3.135 to 3.465 V | 1.65+/-1.65V |
X1G0041411011 | VG-4513CA | 122.880000 MHz | GHCT | 7.00 x 5.00 x 1.60 mm | LV-PECL | 3.135 to 3.465 V | 1.65+/-1.65V |
X1G0041411012 | VG-4513CA | 148.500000 MHz | GGCT | 7.00 x 5.00 x 1.60 mm | LV-PECL | 3.135 to 3.465 V | 1.65+/-1.65V |
X1G0041411013 | VG-4513CA | 155.520000 MHz | GGCT | 7.00 x 5.00 x 1.60 mm | LV-PECL | 3.135 to 3.465 V | 1.65+/-1.65V |
X1G0041411014 | VG-4513CA | 156.250000 MHz | GGCT | 7.00 x 5.00 x 1.60 mm | LV-PECL | 3.135 to 3.465 V | 1.65+/-1.65V |
X1G0041411017 | VG-4513CA | 100.000000 MHz | GGCT | 7.00 x 5.00 x 1.60 mm | LV-PECL | 3.135 to 3.465 V | 1.65+/-1.65V |
X1G0041411018 | VG-4513CA | 125.000000 MHz | GGCT | 7.00 x 5.00 x 1.60 mm | LV-PECL | 3.135 to 3.465 V | 1.65 +/-1.65V |
X1G0041411019 | VG-4513CA | 155.520000 MHz | GFCT | 7.00 x 5.00 x 1.60 mm | LV-PECL | 3.135 to 3.465 V | 1.65+/-1.65V |
X1G0041411020 | VG-4513CA | 156.250000 MHz | GFCT | 7.00 x 5.00 x 1.60 mm | LV-PECL | 3.135 to 3.465 V | 1.65+/-1.65V |
X1G0041411602 | VG-4513CA | 200.000000 MHz | GGCT | 7.00 x 5.00 x 1.60 mm | LV-PECL | 3.135 to 3.465 V | 1.65+/-1.65V |
X1G0041510003 | VG-4513CB | 122.880000 MHz | GGCT | 5.00 x 3.20 x 1.30 mm | LV-PECL | 3.135 to 3.465 V | 1.65+/-1.65V |
X1G0041510004 | VG-4513CB | 153.600000 MHz | GGCT | 5.00 x 3.20 x 1.30 mm | LV-PECL | 3.135 to 3.465 V | 1.65+/-1.65V |
X1G0041510007 | VG-4513CB | 122.880000 MHz | GGCT | 5.00 x 3.20 x 1.30 mm | LV-PECL | 3.135 to 3.465 V | 1.65+/-1.65V |
X1G0041510009 | VG-4513CB SMD晶振 | 153.600000 MHz | GFCT | 5.00 x 3.20 x 1.30 mm | LV-PECL | 3.135 to 3.465 V | 1.65+/-1.65V |
X1G0041510013 | VG-4513CB | 125.000000 MHz | GGCT | 5.00 x 3.20 x 1.30 mm | LV-PECL | 3.135 to 3.465 V | 1.65 +/-1.65V |
X1G0041510016 | VG-4513CB | 156.250000 MHz | GGCT | 5.00 x 3.20 x 1.30 mm | LV-PECL | 3.135 to 3.465 V | 1.65 +/-1.65V |
X1G0044010008 | VG2520CAN | 30.720000 MHz | CJGNBB | 2.50 x 2.00 x 0.70 mm | CMOS | 3.135 to 3.465 V | 1.65+/-1.65V |
X1G0044010011 | VG2520CAN | 27.000000 MHz | CJGNBB | 2.50 x 2.00 x 0.70 mm | CMOS | 3.135 to 3.465 V | 1.65+/-1.65V |
X1G0045411003 | VG7050EAN | 622.080000 MHz | CJGLPZ | 7.00 x 5.00 x 1.50 mm | LV-PECL | 2.970 to 3.630 V | 1.65+/-1.35V |
X1G0045411005 | VG7050EAN | 622.080000 MHz | CJGHPF | 7.00 x 5.00 x 1.50 mm | LV-PECL | 2.970 to 3.630 V | 1.65+/-1.35V |
X1G0045411007 | VG7050EAN | 622.080000 MHz | CJGLPF | 7.00 x 5.00 x 1.50 mm | LV-PECL | 2.970 to 3.630 V | 1.65+/-1.35V |
X1G0045510003 | VG7050EBN | 698.812335 MHz | CJGHBZ | 7.00 x 5.00 x 1.50 mm | LV-PECL | 2.970 to 3.630 V | 1.65+/-1.35V |
X1G0045510004 | VG7050EBN | 794.727753 MHz | CJGHBZ | 7.00 x 5.00 x 1.50 mm | LV-PECL | 2.970 to 3.630 V | 1.65+/-1.35V |
X1G0045510007 | VG7050EBN | 693.482990 MHz | CJGHBZ | 7.00 x 5.00 x 1.50 mm | LV-PECL | 2.970 to 3.630 V | 1.65+/-1.35V |
X1G0045510008 | VG7050EBN | 698.812300 MHz | CJGHCZ | 7.00 x 5.00 x 1.50 mm | LV-PECL | 2.970 to 3.630 V | 1.65+/-1.35V |
X1G0045611003 | VG7050ECN | 622.080000 MHz | CJGLPZ | 7.00 x 5.00 x 1.50 mm | LV-PECL | 2.970 to 3.630 V | 1.65+/-1.35V |
X1G0045611005 | VG7050ECN | 622.080000 MHz | CJGHPF | 7.00 x 5.00 x 1.50 mm | LV-PECL | 2.970 to 3.630 V | 1.65+/-1.35V |
X1G0045611007 | VG7050ECN | 622.080000 MHz | CJGLPF | 7.00 x 5.00 x 1.50 mm | LV-PECL | 2.970 to 3.630 V | 1.65+/-1.35V |
X1M0003910017 | EV1409EAN | 1986.819000 MHz | CPENBA | 14.00 x 9.00 x 2.60 mm | LV-PECL | 3.135 to 3.465 V | 1.65+/-1.65V |
X1M0004010000 | EV1409SAN | CPENBA | 14.00 x 9.00 x 2.60 mm | Sine wave | 3.135 to 3.465 V | 1.65+/-1.65V |

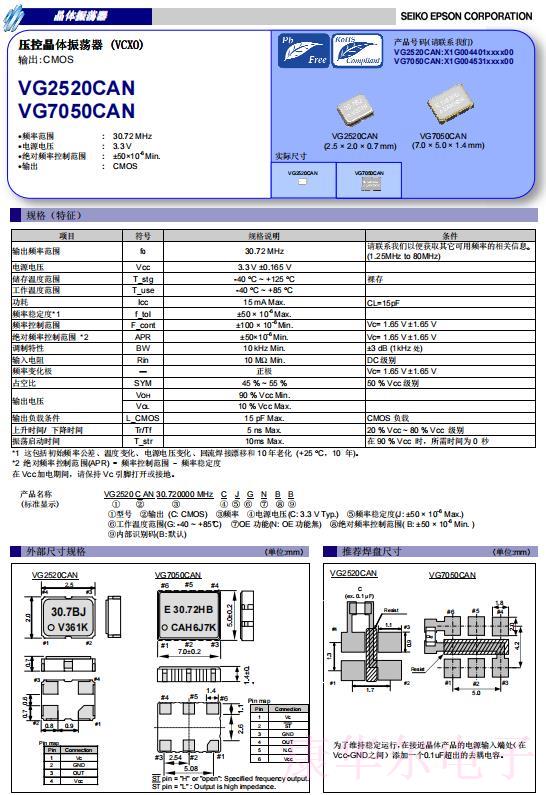

![VG2520CAN VG7050CAN 1 VG2520CAN VG7050CAN 1](/uploadfiles/pictures/news/20230504175924_6595.jpg)
尺寸为2520mm,频率为27MHZ,输出为CMOS,电压3.135 to3.465V,频率稳定度50ppm,工作电压-40 to85 °C,产品具备良好的稳定性能和高可靠性能,适合用于无线模块,通讯模块,汽车充电枪等领域.
