DSA1001DI1-030.0000T,汽车电子专用晶振,小体积有源晶振
频率：30MHz
尺寸：2.5×2.0mm
DSA1001DI1-030.0000T,汽车电子专用晶振,小体积有源晶振,Microchip晶振,DSA1001有源晶振,DSA1001DI1-030.0000T晶振,2520mm晶振,小体积晶振,SMD晶振,汽车AEC-Q100认证晶振,频率30MHz,电压3.3V,频率稳定性50ppm,工作温度-40~85°C,耐高温晶振,抗冲击晶振,抗振动晶振,汽车电子专用晶振,汽车信息娱乐系统晶振, 汽车ADAS应用晶振, 汽车摄像头模块晶振.
订购热线：0755-27838351
DSA1001DI1-030.0000T,汽车电子专用晶振,小体积有源晶振,Microchip晶振,DSA1001有源晶振,DSA1001DI1-030.0000T晶振,2520mm晶振,小体积晶振,SMD晶振,汽车AEC-Q100认证晶振,频率30MHz,电压3.3V,频率稳定性50ppm,工作温度-40~85°C,耐高温晶振,抗冲击晶振,抗振动晶振,汽车电子专用晶振,汽车信息娱乐系统晶振, 汽车ADAS应用晶振, 汽车摄像头模块晶振.

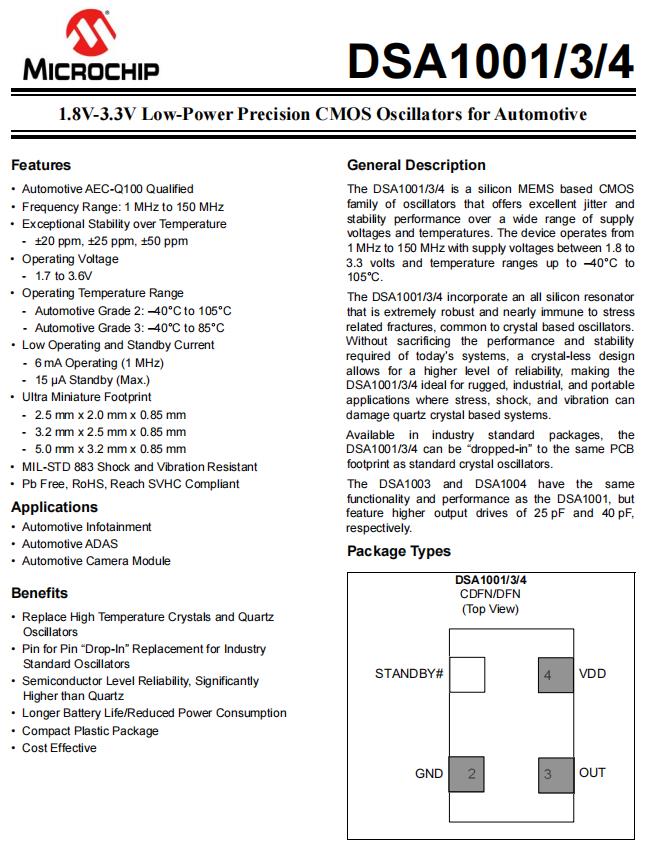

DSA1001DI1-030.0000T,汽车电子专用晶振,小体积有源晶振特点：
•汽车AEC-Q100认证
•频率范围:1 MHz至150 MHz
•在整个温度范围内具有出色的稳定性 - 20 ppm、25 ppm、50 ppm
•工作电压 - 1.7至3.6V
•工作温度范围
-汽车级2:–40°C至105°C
-汽车级3:–40°C至85°C
•低工作和待机电流
- 6mA工作电流(1MHz)
- 15µA待机(最大值)
•超小型尺寸
- 2.5x 2.0x 0.85mm
- 3.2x 2.5x 0.85mm
- 5.0x 3.2x 0.85mm
•MIL-STD 883抗冲击和振动
•无铅、符合RoHS、Reach SVHC标准
DSA1001DI1-030.0000T,汽车电子专用晶振,小体积有源晶振参数图
| 项目 | 规格说明 | 条件 |
| 额定频率 | 30MHz | 请联系我们以便获取其它可用频率的相关信息 |
| 电源电压 | 3.3V |
|
| 储存温度 | -40℃~+150℃ | 裸存 |
| 工作温度 | -40℃~ +85℃ |
|
| 频率稳定度 | ±50ppm | 所有温度范围 |
| 老化 |
±5ppm |
1 year @ +25°C |
| 电流 | 15µA Max | T = +25°C |
| 占空比 | 45%~55% |
|
| 输出逻辑电平低（Vol） |
0.2 x VDDV Max |
6 mA, DSA1001, CL = 15 pF |
| 输出逻辑电平高（Voh） | 0.8 x VDDV Min |
–4 mA, DSA1001, CL = 15 pF |
| 起始时间 | 1.3ms Max |
T = +25°C |
| 输出上升下降时间 | 2.0ns Max |
3.3V, CL=15pF; T=25°C 20%/80%*VDD |
| 周期抖动 | 10ps RMS Max |
f= 100 MHz |
| 最大抖动Cycle-to-Cycle | 50ps Typ |
f= 100 MHz |

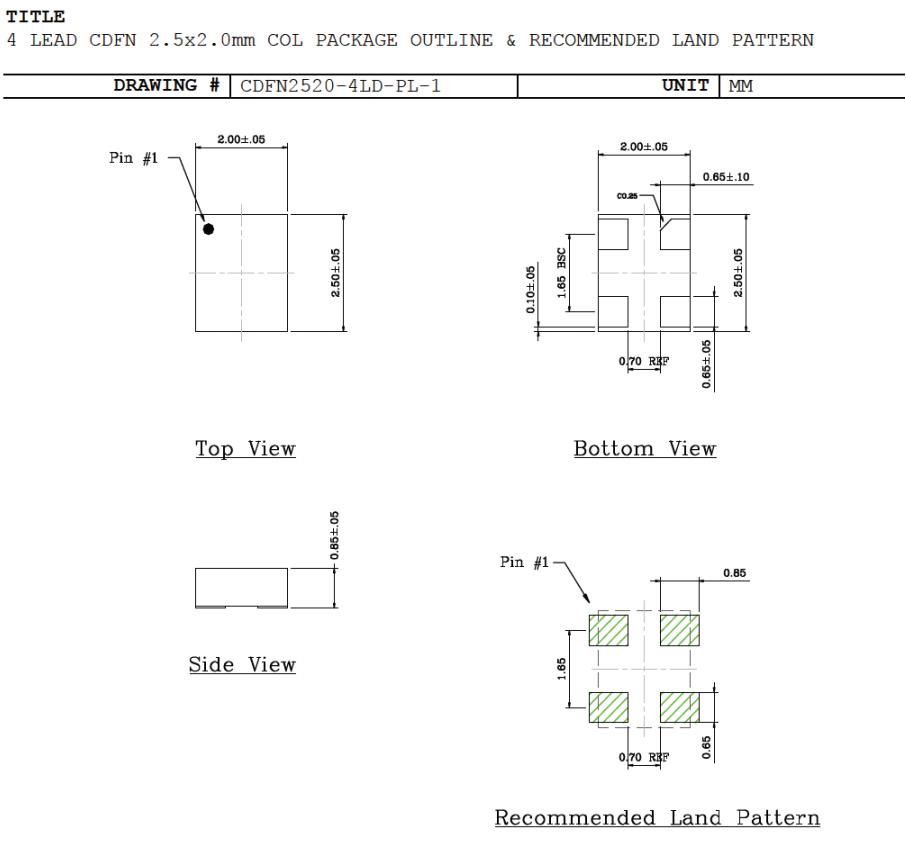

DSA1001DI1-030.0000T,汽车电子专用晶振,小体积有源晶振尺寸图
| 原厂代码 | 晶振品牌 | 型号 | 类型 | 频率 | 电压 | 尺寸 |
| DSC1103DI2-312.5000 | Microchip Technology | DSC1103 | MEMS (Silicon) | 312.5MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1123DI2-050.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 50MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1123DL5-200.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 200MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC6011JI1A-024.0000 | Microchip Technology | DSC60XX | MEMS (Silicon) | 24MHz | 1.71 V ~ 3.63 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC6101JI2A-024.0000 | Microchip Technology | DSC6100 | MEMS (Silicon) | 24MHz | 1.71 V ~ 3.63 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-001.8432 | Microchip Technology | DSC1001 | MEMS (Silicon) | 1.8432MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1033DI1-012.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 12MHz | 3.3V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1033DI1-036.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 36MHz | 3.3V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-038.4000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 38.4MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1101DM2-012.0000 | Microchip Technology | DSC1101 | MEMS (Silicon) | 12MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DE5-018.4320 | Microchip Technology | DSC1001 | MEMS (Silicon) | 18.432MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1101DL5-020.0000 | Microchip Technology | DSC1101 | MEMS (Silicon) | 20MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1123DL1-125.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1033DC1-012.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 12MHz | 3.3V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-026.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 26MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-026.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 26MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-026.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 26MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DM1-033.3333 | Microchip Technology | DSC1121 | MEMS (Silicon) | 33.3333MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-004.0960T | Microchip Technology | DSC1001 | MEMS (Silicon) | 4.096MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-004.0960T | Microchip Technology | DSC1001 | MEMS (Silicon) | 4.096MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-004.0960T | Microchip Technology | DSC1001 | MEMS (Silicon) | 4.096MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1101DL5-052.8000 | Microchip Technology | DSC1101 | MEMS (Silicon) | 52.8MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-020.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 20MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-020.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 20MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-020.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 20MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-024.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 24MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-024.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 24MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-024.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 24MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1123DI2-100.0000B | Microchip Technology | DSC1123 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1123DI2-100.0000B | Microchip Technology | DSC1123 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1123DI2-100.0000B | Microchip Technology | DSC1123 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-075.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 75MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-133.3330 | Microchip Technology | DSC1001 | MEMS (Silicon) | 133.333MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI5-080.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 80MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103DI5-171.8181T | Microchip Technology | DSC1103 | MEMS (Silicon) | 171.8181MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103DI5-171.8181T | Microchip Technology | DSC1103 | MEMS (Silicon) | 171.8181MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103DI5-171.8181T | Microchip Technology | DSC1103 | MEMS (Silicon) | 171.8181MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103DI5-171.8181 | Microchip Technology | DSC1103 | MEMS (Silicon) | 171.8181MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-050.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 50MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-024.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 24MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-025.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 25MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI5-100.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 100MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-025.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 25MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC6003JI2A-048.0000 | Microchip Technology | DSC60XX | MEMS (Silicon) | 48MHz | 1.71 V ~ 3.63 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC6101JI2A-026.0000 | Microchip Technology | DSC6100 | MEMS (Silicon) | 26MHz | 1.71 V ~ 3.63 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC6101JI2A-048.0000 | Microchip Technology | DSC6100 | MEMS (Silicon) | 48MHz | 1.71 V ~ 3.63 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC6003JI2A-016.0000 | Microchip Technology | DSC60XX | MEMS (Silicon) | 16MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC6101JI2A-012.2880 | Microchip Technology | DSC6100 | MEMS (Silicon) | 12.288MHz | 1.71 V ~ 3.63 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC6101JI2A-050.0000 | Microchip Technology | DSC6100 | MEMS (Silicon) | 50MHz | 1.71 V ~ 3.63 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC6102JI2A-100.0000 | Microchip Technology | DSC6100 | MEMS (Silicon) | 100MHz | 1.71 V ~ 3.63 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC6111JI2A-024.0000 | Microchip Technology | DSC6100 | MEMS (Silicon) | 24MHz | 1.71 V ~ 3.63 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC6101JI2A-012.0000 | Microchip Technology | DSC6100 | MEMS (Silicon) | 12MHz | 1.71 V ~ 3.63 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC6101JI2A-027.0000 | Microchip Technology | DSC6100 | MEMS (Silicon) | 27MHz | 1.71 V ~ 3.63 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1101DL1-027.0000 | Microchip Technology | DSC1101 | MEMS (Silicon) | 27MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-004.9152 | Microchip Technology | DSC1001 | MEMS (Silicon) | 4.9152MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1033DI1-048.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 48MHz | 3.3V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-012.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 12MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-048.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 48MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1033DI1-064.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 64MHz | 3.3V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1033DI1-025.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 25MHz | 3.3V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1033DI1-050.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 50MHz | 3.3V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1033DI1-024.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 24MHz | 3.3V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1033DI1-016.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 16MHz | 3.3V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-020.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 20MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-032.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 32MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1033DI1-029.4912 | Microchip Technology | DSC1033 | MEMS (Silicon) | 29.4912MHz | 3.3V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-038.4000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 38.4MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1003DI2-100.0000 | Microchip Technology | DSC1003 | MEMS (Silicon) | 100MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-045.1584 | Microchip Technology | DSC1001 | MEMS (Silicon) | 45.1584MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-049.1520 | Microchip Technology | DSC1001 | MEMS (Silicon) | 49.152MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-011.0592 | Microchip Technology | DSC1001 | MEMS (Silicon) | 11.0592MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL1-025.2000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 25.2MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1101DM1-012.0000 | Microchip Technology | DSC1101 | MEMS (Silicon) | 12MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-005.0196 | Microchip Technology | DSC1001 | MEMS (Silicon) | 5.0196MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL2-016.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 16MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1033DI1-080.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 80MHz | 3.3V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1004DI2-010.0000 | Microchip Technology | DSC1004 | MEMS (Silicon) | 10MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-012.8000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 12.8MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1004DI2-016.0000 | Microchip Technology | DSC1004 | MEMS (Silicon) | 16MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-028.6363 | Microchip Technology | DSC1001 | MEMS (Silicon) | 28.6363MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-031.2500 | Microchip Technology | DSC1001 | MEMS (Silicon) | 31.25MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-037.1250 | Microchip Technology | DSC1001 | MEMS (Silicon) | 37.125MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-024.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 24MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-050.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 50MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-029.5000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 29.5MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-027.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 27MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DI2-125.0000 | Microchip Technology | DSC1121 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
