DSC1004BL3-125.0000|美国微芯进口晶振|6G发射器晶振
频率：125MHz
尺寸：5.0×3.2mm
DSC1004BL3-125.0000|美国微芯进口晶振|6G发射器晶振,美国微芯进口晶振,DSC1004有源晶振,DSC1004BL3-125.0000石英晶体振荡器,5032mm贴片晶振,小体积晶振,频率125MHz,电压3.3V,频率稳定性20ppm,工作温度-40~105°C,耐高温晶振,高可靠性晶振,低成本晶振,6G发射器晶振,硬盘录像机晶振,智能电视晶振,监控摄像机晶振,工业设备晶振.
订购热线：0755-27838351
DSC1004BL3-125.0000|美国微芯进口晶振|6G发射器晶振,美国微芯进口晶振,DSC1004有源晶振,DSC1004BL3-125.0000石英晶体振荡器,5032mm贴片晶振,小体积晶振,频率125MHz,电压3.3V,频率稳定性20ppm,工作温度-40~105°C,耐高温晶振,高可靠性晶振,低成本晶振,6G发射器晶振,硬盘录像机晶振,智能电视晶振,监控摄像机晶振,工业设备晶振.
DSC1004BL3-125.0000|美国微芯进口晶振|6G发射器晶振特点：
•频率范围:1mhz ~ 150mhz
•特殊的温度稳定性-±10ppm，±20ppm，±25ppm，±50ppm
•工作电压- 1.7 ~ 3.6V
•工作温度范围
-Ext.工业- 40°C至105°C
-工业用- 40℃~ 85℃
-商用—20℃~ 70℃
•低工作和待机电流
- 6ma工作(1mhz)
- 15µA待机(最大)
•超微型足迹
- 2.5 mm × 2.0 mm × 0.85 mm
- 3.2 mm × 2.5 mm × 0.85 mm
- 5.0 mm × 3.2 mm × 0.85 mm
- 7.0 mm × 5.0 mm × 0.85 mm
•MIL-STD 883抗冲击和振动
•无铅，符合RoHS、Reach SVHC标准
•通过AEC-Q100可靠性认证
DSC1004BL3-125.0000|美国微芯进口晶振|6G发射器晶振参数图
| 项目 | 规格说明 | 条件 |
| 额定频率 | 125MHz | 请联系我们以便获取其它可用频率的相关信息 |
| 电源电压 | 3.3V |
|
| 储存温度 | -55℃~+150℃ | 裸存 |
| 工作温度 | -40℃~ +105℃ |
|
| 频率稳定度 | ±20ppm | 包括由初始公差、温度和电源电压引起的频率变化 |
| 老化 |
±5ppm |
1 year @ +25°C |
| 电流 | 15µA Max | T = +25°C |
| 负载 | 40pf |
|
| 空载电流 | 16.6mA |
150 MHz |
| 输出逻辑电平低（Vol） | 0.1x VDD Max |
–8 mA, DSC1004, CL = 40 pF |
| 输出逻辑电平高（Voh） | 0.9x VDD Max |
–8 mA, DSC1004, CL = 40 pF |
|
输出上升下降时间 |
2ns Max |
DSC1004, CL = 40pF |
| 起始时间 | 10ms Max |
|
| 抖动最大Cycle-to-Cycle | 50ps Typ | f = 100 MHz |
|
周期抖动 |
10ps |
100MHz,RMS |

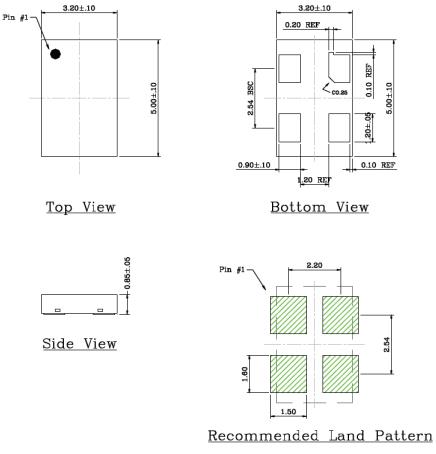

DSC1004BL3-125.0000|美国微芯进口晶振|6G发射器晶振 尺寸图
