DSC1124DI2-094.5500T|2520mm晶体振荡器|6G以太网晶振
频率：94.55MHz
尺寸：2.5×2.0mm
DSC1124DI2-094.5500T|2520mm晶体振荡器|6G以太网晶振,美国微芯进口晶振,DSC1124有源晶振,DSC1124DI2-094.5500T晶振,HCSL石英晶体振荡器,贴片差分晶振,超小型SMD晶振,尺寸2520mm,频率94.55MHz,电压3.3V,频率稳定性25ppm,工作温度-40~85°C,耐高温晶振,高可靠性晶振,6G以太网晶振,网络系统晶振,测试与测量设备晶振,显示端口晶振,服务器和存储系统晶振.
订购热线：0755-27838351
DSC1124DI2-094.5500T|2520mm晶体振荡器|6G以太网晶振,美国微芯进口晶振,DSC1124有源晶振,DSC1124DI2-094.5500T晶振,HCSL石英晶体振荡器,贴片差分晶振,超小型SMD晶振,尺寸2520mm,频率94.55MHz,电压3.3V,频率稳定性25ppm,工作温度-40~85°C,耐高温晶振,高可靠性晶振,6G以太网晶振,网络系统晶振,测试与测量设备晶振,显示端口晶振,服务器和存储系统晶振.

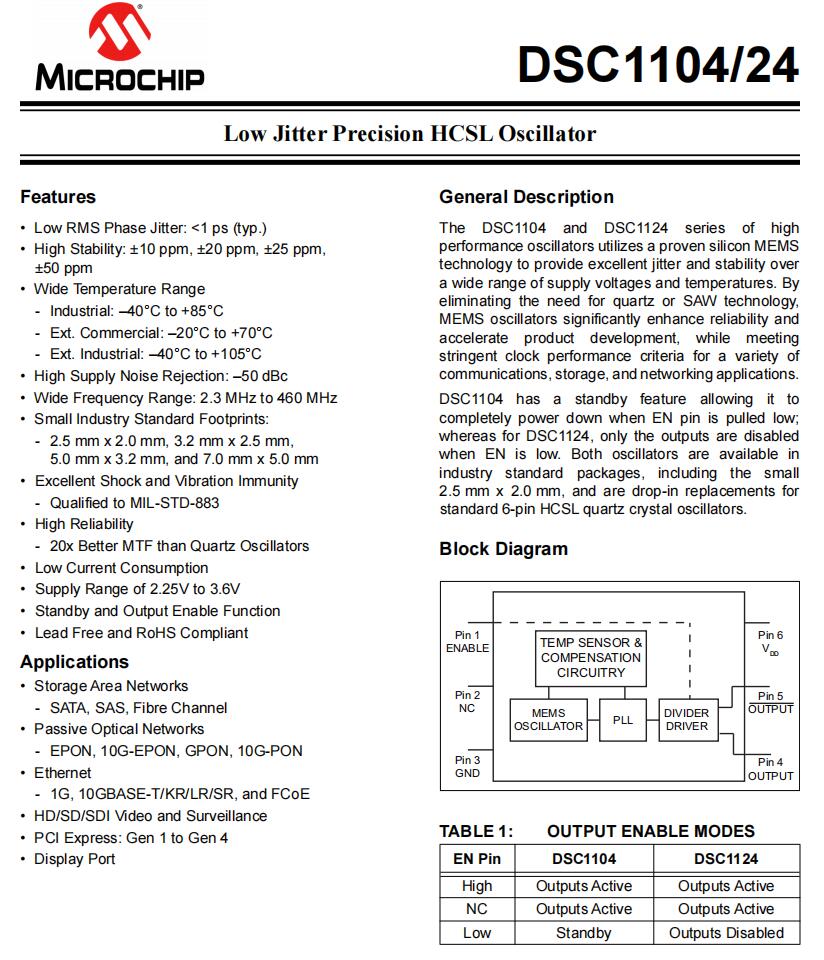

DSC1124DI2-094.5500T|2520mm晶体振荡器|6G以太网晶振特点：
•频率范围:2.3mhz ~ 460mhz
•高稳定性-±10ppm，±20ppm，±25ppm，±50ppm
•工作温度范围
-Ext.工业- 40°C至105°C
-工业用- 40℃~ 85℃
-商用—20℃~ 70℃
•低工作和待机电流
- 6ma工作(1mhz)
- 15µA待机(最大)
•超微型足迹
- 2.5 mm × 2.0 mm × 0.85 mm
- 3.2 mm × 2.5 mm × 0.85 mm
- 5.0 mm × 3.2 mm × 0.85 mm
- 7.0 mm × 5.0 mm × 0.85 mm
•高电源噪声抑制:-50 dBc
•卓越的抗冲击和抗振动能力
-符合MIL-STD-883标准
•高可靠性
- MTF比石英振荡器好20倍
•低电流消耗
•电源范围2.25V至3.6V
•待机和输出使能功能
•无铅，符合RoHS标准
DSC1124DI2-094.5500T|2520mm晶体振荡器|6G以太网晶振参数图
| 项目 | 规格说明 | 条件 |
| 额定频率 | 94.55MHz | 请联系我们以便获取其它可用频率的相关信息 |
| 电源电压 | 3.3V |
|
| 储存温度 | -55℃~+150℃ | 裸存 |
| 工作温度 | -40℃~ +85℃ |
|
| 频率稳定度 | ±25ppm | 包括由初始公差、温度和电源电压引起的频率变化 |
| 老化 |
±5ppm |
1 year @ +25°C |
| 电流 | 42mA Max |
Output Enabled, RL = 50Ω |
| 占空比 | 48%~52% |
Differential |
| 输出逻辑电平低（Vol） | 0.1V Max |
|
| 输出逻辑电平高（Voh） | 0.725V Min |
RL = 50Ω |
| 起始时间 | 5ms Max |
|
| 集成相位噪声 | 0.25ps Typ | 200 kHz to 20 MHz @ 156.25 MHz，RMS |
|
周期抖动 |
2.5ps |
RMS |

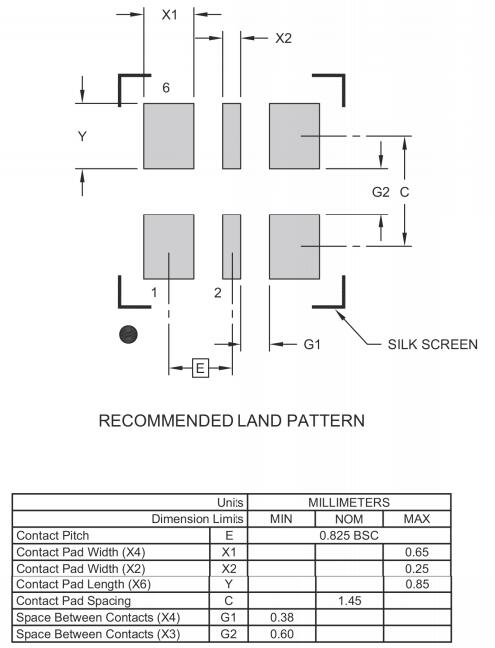

DSC1124DI2-094.5500T|2520mm晶体振荡器|6G以太网晶振 尺寸图
