VCC4A-B3B-49M1520000TR,6G以太网晶振,欧美进口晶振
频率：49.152MHz
尺寸：5.0×3.2mm
VCC4A-B3B-49M1520000TR,6G以太网晶振,欧美进口晶振,Microchip晶振,欧美进口晶振,VCC4A贴片式石英晶体振荡器,VCC4A-B3B-49M1520000TR晶振,尺寸5032mm,频率49.152MHz,电压3.3V,频率稳定性50ppm,工作温度-10~70°C,超低抖动晶振,无铅环保晶振,6G以太网晶振,宽带接入晶振,基站晶振,测试和测量设备晶振,驱动A/D, D/A, FPGA晶振,COTS晶振.
订购热线：0755-27838351
VCC4A-B3B-49M1520000TR,6G以太网晶振,欧美进口晶振,Microchip晶振,欧美进口晶振,VCC4A贴片式石英晶体振荡器,VCC4A-B3B-49M1520000TR晶振,尺寸5032mm,频率49.152MHz,电压3.3V,频率稳定性50ppm,工作温度-10~70°C,超低抖动晶振,无铅环保晶振,6G以太网晶振,宽带接入晶振,基站晶振,测试和测量设备晶振,驱动A/D, D/A, FPGA晶振,COTS晶振.
VCC4A-B3B-49M1520000TR,6G以太网晶振,欧美进口晶振特点：
•超低抖动，基本或第三泛音水晶设计
•CMOS输出晶体振荡器
•输出频率从1.024 MHz到160.000MHz
•1.8V, 2.5V, 3.3V, 5.0V操作
•输出禁用功能
•卓越的±25 ppm温度稳定性
•工作温度选项：-10°C至+70°C， -40°C至+85°C
•5.0mmx 3.2mm小型工业标准包装
•产品符合RoHS指令和与无铅组件完全兼容（不包括焊浸_SNPB选项)

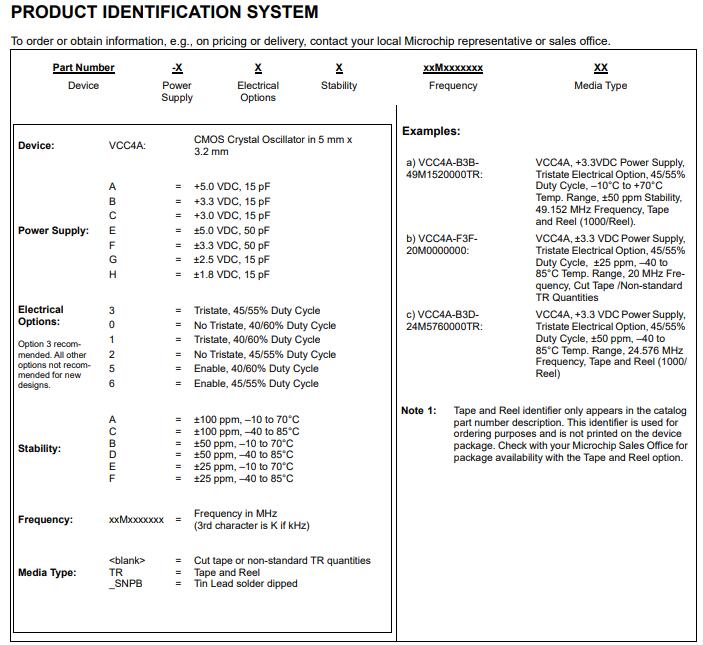

VCC4A-B3B-49M1520000TR,6G以太网晶振,欧美进口晶振 参数图
| 项目 | 规格说明 | 条件 |
| 额定频率 | 49.152MHz | 请联系我们以便获取其它可用频率的相关信息 |
| 电源电压 | 3.3V |
|
| 储存温度 | -40℃~+85℃ | 裸存 |
| 工作温度 | -10℃~ +70℃ |
|
| 频率稳定度 | ±50ppm | -40 to +85°C |
| 电流 | 18mA Max | 40.001~65MHz |
| 占空比 | 45%~55% |
@ 50% of Vod |
| 负载 | 15pf |
|
| 输出逻辑电平低（Vol） | 0.1x VDD Typ |
|
| 输出逻辑电平高（Voh） | 0.9x VDD Typ |
|
|
输出上升下降时间 |
5ns Max |
20.001~50MHz |
| 起始时间 | 10ms Max |
|
| RMS抖动 | 115fs Max | 12KHz~20MHz |
|
周期抖动 |
2.8ps |
100MHz,RMS |
| 25ps |
100MHz,Peak-to-peak |

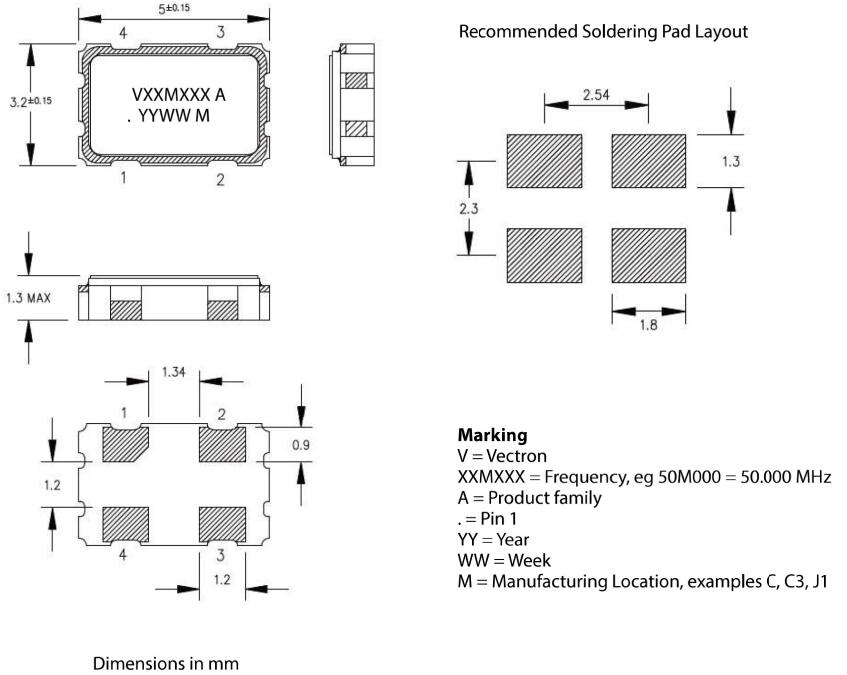

VCC4A-B3B-49M1520000TR,6G以太网晶振,欧美进口晶振 尺寸图
| 原厂代码 | 晶振品牌 | 型号 | 类型 | 频率 | 电压 | 尺寸 |
| DSC1123BL2-125.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1030BC1-008.0000 | Microchip Technology | DSC1030 | MEMS (Silicon) | 8MHz | 3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BC1-024.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 24MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BC1-026.6000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 26MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BE2-024.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 24MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1101BI5-133.0000 | Microchip Technology | DSC1101 | MEMS (Silicon) | 133MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1123BL5-156.2500 | Microchip Technology | DSC1123 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1123BI2-100.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BI2-148.5000 | Microchip Technology | DSC1103 | MEMS (Silicon) | 148.5MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BI2-135.0000 | Microchip Technology | DSC1103 | MEMS (Silicon) | 135MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1102BI2-125.0000 | Microchip Technology | DSC1102 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1102BI2-153.6000 | Microchip Technology | DSC1102 | MEMS (Silicon) | 153.6MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BM1-024.0000 | Microchip Technology | DSC1121 | MEMS (Silicon) | 24MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1104BE2-100.0000 | Microchip Technology | DSC1104 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BI2-100.0000T | Microchip Technology | DSC1103 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BI2-100.0000T | Microchip Technology | DSC1103 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BI2-100.0000T | Microchip Technology | DSC1103 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-080.0000 | Microchip Technology | DSC1121 | MEMS (Silicon) | 80MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1122BE1-156.2500T | Microchip Technology | DSC1122 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1122BE1-156.2500T | Microchip Technology | DSC1122 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1122BE1-156.2500T | Microchip Technology | DSC1122 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1122BI1-100.0000 | Microchip Technology | DSC1122 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1122BI2-100.0000 | Microchip Technology | DSC1122 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1122BI2-114.2850 | Microchip Technology | DSC1122 | MEMS (Silicon) | 114.285MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1122BI2-155.5200 | Microchip Technology | DSC1122 | MEMS (Silicon) | 155.52MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1122BI2-156.2500 | Microchip Technology | DSC1122 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1102BI1-100.0000 | Microchip Technology | DSC1102 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1123BI5-156.2500T | Microchip Technology | DSC1123 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1123BI5-156.2500T | Microchip Technology | DSC1123 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1123BI5-156.2500T | Microchip Technology | DSC1123 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BL5-062.5000 | Microchip Technology | DSC1103 | MEMS (Silicon) | 62.5MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| MX553BBA312M500 | Microchip Technology | MX55 | XO (Standard) | 312.5MHz | 2.375 V ~ 3.63 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BE1-050.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 50MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BI2-027.1200 | Microchip Technology | DSC1033 | MEMS (Silicon) | 27.12MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BE2-010.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 10MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-048.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 48MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-010.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 10MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-020.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 20MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-024.5760 | Microchip Technology | DSC1001 | MEMS (Silicon) | 24.576MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-027.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 27MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-014.3181 | Microchip Technology | DSC1001 | MEMS (Silicon) | 14.3181MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-014.7456 | Microchip Technology | DSC1001 | MEMS (Silicon) | 14.7456MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-016.3840 | Microchip Technology | DSC1001 | MEMS (Silicon) | 16.384MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-040.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 40MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-024.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 24MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-025.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 25MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-012.5000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 12.5MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-040.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 40MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-050.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 50MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-024.5760 | Microchip Technology | DSC1001 | MEMS (Silicon) | 24.576MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BI1-025.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 25MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-005.5296 | Microchip Technology | DSC1001 | MEMS (Silicon) | 5.5296MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-025.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 25MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-004.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 4MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-010.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 10MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-013.0810 | Microchip Technology | DSC1001 | MEMS (Silicon) | 13.081MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-054.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 54MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-012.2888 | Microchip Technology | DSC1001 | MEMS (Silicon) | 12.2888MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BL1-060.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 60MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BE1-125.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 125MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BL2-020.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 20MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-125.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 125MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BE5-064.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 64MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BI1-100.0000 | Microchip Technology | DSC1124 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI5-013.5600 | Microchip Technology | DSC1001 | MEMS (Silicon) | 13.56MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI5-040.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 40MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BI2-100.0000 | Microchip Technology | DSC1124 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BL5-010.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 10MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BL5-016.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 16MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BL5-064.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 64MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BL5-095.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 95MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI5-090.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 90MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| MX555ABA50M0000 | Microchip Technology | MX55 | XO (Standard) | 50MHz | 2.375 V ~ 3.63 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-012.2880 | Microchip Technology | DSC1121 | MEMS (Silicon) | 12.288MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
