EC2745TS-50.000M,Ecliptek有源晶振,7050mm,蓝牙模块晶振

频率：50.000MHz

尺寸：7.0x5.0x1.6mm

EC2745TS-50.000M,Ecliptek有源晶振,7050mm,蓝牙模块晶振，美国进口晶振，Ecliptek晶振，日蚀晶振，型号：EC27系列，编码为：EC2745TS-50.000M，频率：50.000MHz，电压：2.5V，工作温度范围：-10℃至+70℃，CMOS输出晶振，频率稳定性：±50ppm，小体积晶振尺寸：7.0x5.0x1.6mm封装，四脚贴片晶振，石英晶振，有源晶振，时钟振荡器，石英晶体振荡器。具有超小型，轻薄型，高品质，高可靠性等特点。应用于：通讯设备晶振，蓝牙模块晶振，汽车电子晶振，GPS定位晶振，智能家居等。

订购热线：0755-27838351

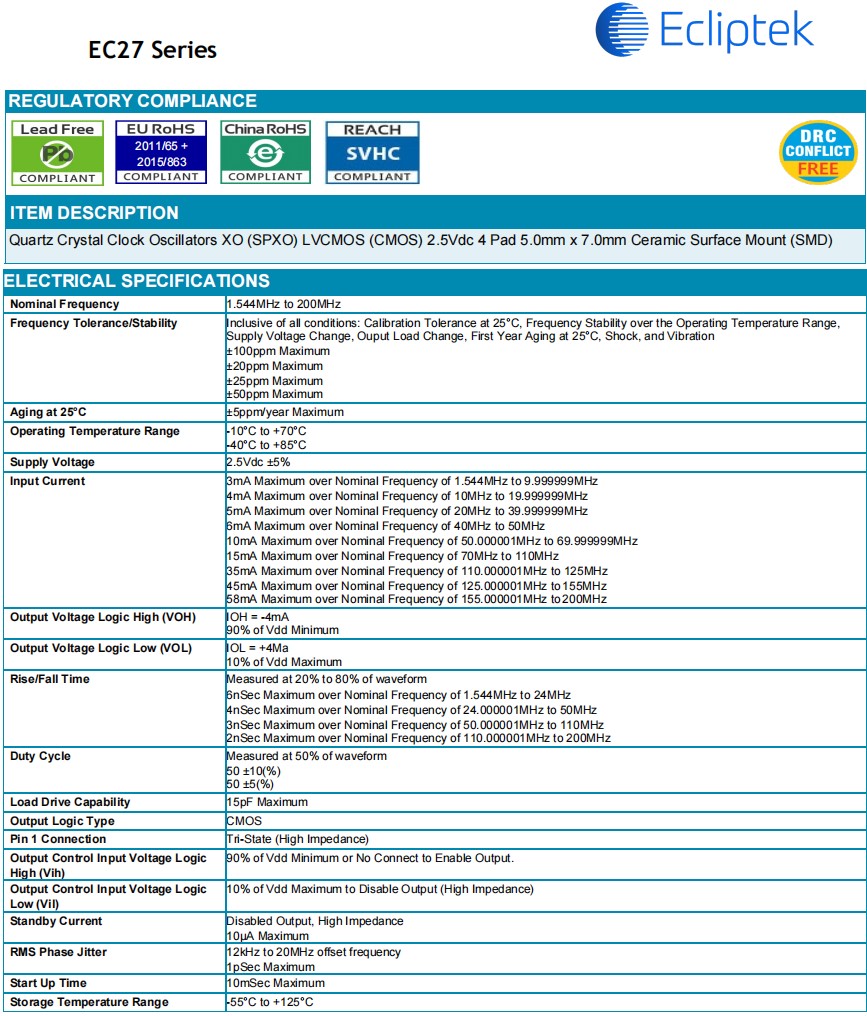

EC2745TS-50.000M,Ecliptek有源晶振,7050mm,蓝牙模块晶振,参数表

Nominal Frequency			50 MHz
Frequency Tolerance/Stability			Inclusive of all conditions: Calibration Tolerance at 25°C, Frequency Stability over the Operating Temperature Range, Supply Voltage Change, Ouput Load Change, First Year Aging at 25°C, Shock, and Vibration ±100ppm Maximum ±20ppm Maximum ±25ppm Maximum ±50ppm Maximum
Aging at 25°C			±5ppm/year Maximum
Operating Temperature Range			- 10°C to +70°C -40°C to +85°C
Supply Voltage			2.5Vdc ±5%
Input Current			3mA Maximum over Nominal Frequency of 1.544MHz to 9.999999MHz 4mA Maximum over Nominal Frequency of 10MHz to 19.999999MHz 5mA Maximum over Nominal Frequency of 20MHz to 39.999999MHz 6mA Maximum over Nominal Frequency of 40MHz to 50MHz 10mA Maximum over Nominal Frequency of 50.000001MHz to 69.999999MHz 15mA Maximum over Nominal Frequency of 70MHz to 110MHz 35mA Maximum over Nominal Frequency of 110.000001MHz to 125MHz 45mA Maximum over Nominal Frequency of 125.000001MHz to 155MHz 58mA Maximum over Nominal Frequency of 155.000001MHz to 200MHz
Output Voltage Logic High (VOH)			IOH = -4mA 90% of Vdd Minimum
Output Voltage Logic Low (VOL)			IOL = +4Ma 10% of Vdd Maximum
Rise/Fall Time			Measured at 20% to 80% of waveform 6nSec Maximum over Nominal Frequency of 1.544MHz to 24MHz 4nSec Maximum over Nominal Frequency of 24.000001MHz to 50MHz 3nSec Maximum over Nominal Frequency of 50.000001MHz to 110MHz 2nSec Maximum over Nominal Frequency of 110.000001MHz to 200MHz
Duty Cycle			Measured at 50% of waveform 50 ±10(%) 50 ±5(%)
Load Drive Capability			15pF Maximum
Output Logic Type			CMOS
Pin 1 Connection			Tri-State (High Impedance)
Output Control Input Voltage Logic High (Vih)			90% of Vdd Minimum or No Connect to Enable Output.
Output Control Input Voltage Logic Low (Vil)			10% of Vdd Maximum to Disable Output (High Impedance)
Standby Current			Disabled Output, High Impedance 10µA Maximum
RMS Phase Jitter			12kHz to 20MHz offset frequency 1pSec Maximum
Start Up Time			10mSec Maximum
Storage Temperature Range			-55°C to +125°C

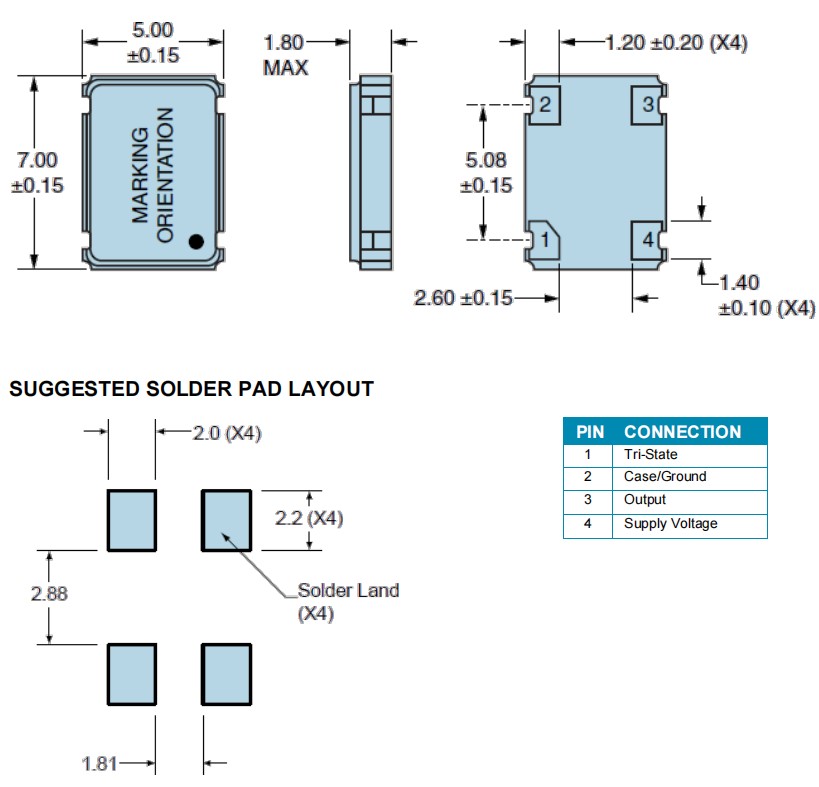

EC2745TS-50.000M,Ecliptek有源晶振,7050mm,蓝牙模块晶振,尺寸图

欧美进口晶振	品牌	型号	频率	长	宽	高	工作温度范围
EC2700TS-25.000M TR	Ecliptek晶振	EC27	25 MHz	7mm	5mm	1.6mm	-10°C ~ 70°C
EC2725ETTS-25.000M TR	Ecliptek晶振	EC27	25 MHz	7mm	5mm	1.6mm	-40°C ~ 85°C
EC2725TS-33.333M	Ecliptek晶振	EC27	33.333 MHz	7mm	5mm	1.6mm	-10°C ~ 70°C
EC2725TS-33.333M TR	Ecliptek晶振	EC27	33.333 MHz	7mm	5mm	1.6mm	-10°C ~ 70°C
EC2745ETTS-100.000M TR	Ecliptek晶振	EC27	100 MHz	7mm	5mm	1.6mm	-40°C ~ 85°C
EC2745ETTS-25.000M	Ecliptek晶振	EC27	25 MHz	7mm	5mm	1.6mm	-40°C ~ 85°C
EC2745ETTS-25.000M TR	Ecliptek晶振	EC27	25 MHz	7mm	5mm	1.6mm	-40°C ~ 85°C
EC2745ETTTS-25.000M TR	Ecliptek晶振	EC27	25 MHz	7mm	5mm	1.6mm	-40°C ~ 85°C
EC2745TS-50.000M	Ecliptek晶振	EC27	50 MHz	7mm	5mm	1.6mm	-10°C ~ 70°C
EC2745TTS-25.000M	Ecliptek晶振	EC27	25 MHz	7mm	5mm	1.6mm	-10°C ~ 70°C
EC2745TTS-50.000M TR	Ecliptek晶振	EC27	50 MHz	7mm	5mm	1.6mm	-10°C ~ 70°C
