KC3225L100.000P30J00-6G路由器晶振-贴片差分晶振
prevnext

KC3225L100.000P30J00-6G路由器晶振-贴片差分晶振

频率：100MHz

尺寸：3.2×2.5mm

KC3225L100.000P30J00-6G路由器晶振-贴片差分晶振,日本京瓷晶振,进口石英晶体振荡器,KC3225L-P2有源晶振,KC3225L100.000P30J00晶振,3225mm晶振,小体积石英晶体,6G路由器晶振,贴片差分晶振,频率100MHz,电压3.3V,频率稳定性50ppm,工作温度0~70°C,LV-PECL输出晶振,智能手机晶振,医疗设备应用晶振,可视智能家居晶振,蓝牙模块晶振.
订购热线：0755-27838351
QQ咨询 点击这里给我发消息

1

KC3225L100.000P30J00-6G路由器晶振-贴片差分晶振,日本京瓷晶振,进口石英晶体振荡器,KC3225L-P2有源晶振,KC3225L100.000P30J00晶振,3225mm晶振,小体积石英晶体,6G路由器晶振,贴片差分晶振,频率100MHz,电压3.3V,频率稳定性50ppm,工作温度0~70°C,LV-PECL输出晶振,智能手机晶振,医疗设备应用晶振,可视智能家居晶振,蓝牙模块晶振.

KC3225L100.000P30J00-6G路由器晶振-贴片差分晶振特点：

●小型陶瓷封装类型

●采用缝隙封装的高可靠性

●LV-PECL输出

●电源电压VCC=3.3V

●可支持±25×10

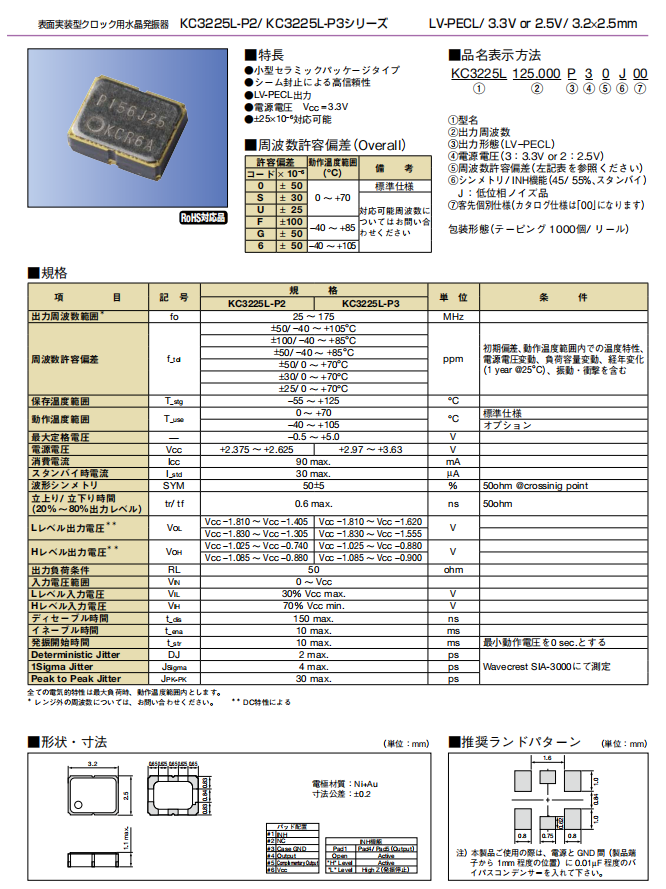

KC3225L100.000P30J00-6G路由器晶振-贴片差分晶振参数图

项目 符号 规格说明 条件
额定频率 f_nom 100MHz 请联系我们以便获取其它可用频率的相关信息
电源电压 Vcc 3.3V
储存温度 T_stg -55℃~+125℃ 裸存
工作温度 T_use 0℃~ +70℃
频率公差（标准） f_tol ±50 ppm +25℃,超出标准的规格说明请联系我们以便获取相关信息
电流消耗
ICC
90mA Max
禁用消耗电流
IDE
30mA Max
对称性（占空比） SYM
50±5%
50ohm @crossing point
低位准输出电压 VOH
VCC −1.025V ~VCC −0.880V
Typ. 1.1V
高位准输出电压 VOL
VCC −1.810V ~ VCC −1.620V
Typ. 1.43V
输出负载 RL 50Ω
LV-PECL Output
输入电压 VIH 70%Vcc Min OE terminal
VIL 30%Vcc Max
上升下降时间 tr/tf 0.6ns Max
50ohm
起始时间 t str 10ms Max
@Minimum operating voltage to be 0 sec
1 Sigma 抖动
 JSigma
 4ps Max
Wavecrest SIA-3000にて測定


峰对峰抖动
JPK-PK
30ps Max



3

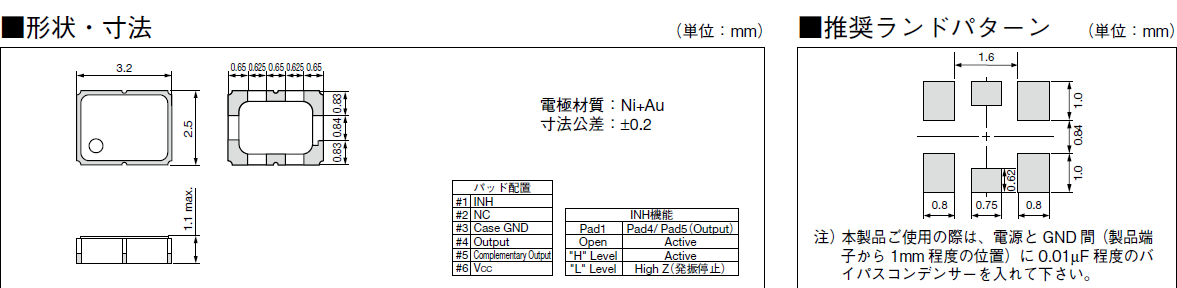

KC3225L100.000P30J00-6G路由器晶振-贴片差分晶振尺寸图

KC3225L_P2_P3 3.2-2.5 OSC

原厂编码 生产厂家 型号 频率 电压 工作温度
KC3225K40.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 40MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K40.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 40MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K40.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 40MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K20.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 20MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K20.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 20MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K20.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 20MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K27.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 27MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K27.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 27MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K27.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 27MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K32.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 32MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K32.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 32MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K32.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 32MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K33.3333C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 33.3333MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K33.3333C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 33.3333MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K33.3333C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 33.3333MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K48.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 48MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K48.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 48MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K48.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 48MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K50.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 50MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K50.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 50MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K50.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 50MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K1.84320C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 1.8432MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K1.84320C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 1.8432MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K1.84320C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 1.8432MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K7.37280C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 7.3728MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K7.37280C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 7.3728MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K7.37280C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 7.3728MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K8.00000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 8MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K8.00000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 8MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K8.00000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 8MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K10.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 10MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K10.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 10MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K10.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 10MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K12.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 12MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K12.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 12MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K12.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 12MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K14.7456C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 14.7456MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K14.7456C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 14.7456MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K14.7456C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 14.7456MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K18.4320C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 18.432MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K18.4320C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 18.432MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K18.4320C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 18.432MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K32.7680C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 32.768MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K32.7680C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 32.768MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K32.7680C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 32.768MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K33.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 33MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K33.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 33MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K33.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 33MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K60.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 60MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K60.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 60MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K60.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 60MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K66.6667C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 66.6667MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K66.6667C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 66.6667MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K66.6667C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 66.6667MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225A50.0000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 50MHz 3.3V -40°C ~ 85°C
KC3225A50.0000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 50MHz 3.3V -40°C ~ 85°C
KC3225A50.0000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 50MHz 3.3V -40°C ~ 85°C
KC3225A16.0000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 16MHz 3.3V -40°C ~ 85°C
KC3225A16.0000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 16MHz 3.3V -40°C ~ 85°C
KC3225A16.0000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 16MHz 3.3V -40°C ~ 85°C
KC3225A12.0000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 12MHz 3.3V -10°C ~ 70°C
KC3225A12.0000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 12MHz 3.3V -10°C ~ 70°C
KC3225A12.0000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 12MHz 3.3V -10°C ~ 70°C
KC3225A25.0000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 25MHz 3.3V -10°C ~ 70°C
KC3225A25.0000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 25MHz 3.3V -10°C ~ 70°C
KC3225A25.0000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 25MHz 3.3V -10°C ~ 70°C
KC3225A50.0000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 50MHz 3.3V -10°C ~ 70°C
KC3225A50.0000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 50MHz 3.3V -10°C ~ 70°C
KC3225A50.0000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 50MHz 3.3V -10°C ~ 70°C
KC3225K24.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 24MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K24.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 24MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K24.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 24MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225A125.000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 125MHz 3.3V -10°C ~ 70°C
KC3225A125.000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 125MHz 3.3V -10°C ~ 70°C
KC3225A125.000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 125MHz 3.3V -10°C ~ 70°C
KC3225A100.000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 100MHz 3.3V -10°C ~ 70°C
KC3225A100.000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 100MHz 3.3V -10°C ~ 70°C
KC3225A100.000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 100MHz 3.3V -10°C ~ 70°C
KC3225A125.000C20E00 AVX Corp/Kyocera Corp KC3225A-C2, Kyocera 125MHz 2.5V -10°C ~ 70°C
KC3225A125.000C20E00 AVX Corp/Kyocera Corp KC3225A-C2, Kyocera 125MHz 2.5V -10°C ~ 70°C
KC3225A125.000C20E00 AVX Corp/Kyocera Corp KC3225A-C2, Kyocera 125MHz 2.5V -10°C ~ 70°C
KC3225K16.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 16MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K16.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 16MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K16.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 16MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K80.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 80MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K80.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 80MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K80.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 80MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225A40.0000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 40MHz 3.3V -10°C ~ 70°C
KC3225A40.0000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 40MHz 3.3V -10°C ~ 70°C
KC3225A40.0000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 40MHz 3.3V -10°C ~ 70°C
KC3225A24.5760C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 24.576MHz 3.3V -10°C ~ 70°C
KC3225A24.5760C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 24.576MHz 3.3V -10°C ~ 70°C
KC3225A24.5760C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 24.576MHz 3.3V -10°C ~ 70°C

KC3225L-P2
