XG5032HAN100.000000MHzCJAA-差分晶体振荡器-6G基站晶振
prevnext

XG5032HAN100.000000MHzCJAA-差分晶体振荡器-6G基站晶振

频率：100MHz

尺寸：5.0×3.2×1.4mm

XG5032HAN100.000000MHzCJAA-差分晶体振荡器-6G基站晶振,日本爱普生晶振,XG5032HAN有源晶振,XG5032HAN100.000000MHzCJAA晶振,差分晶体振荡器,石英贴片晶振,HCSL输出晶振,耐高温晶振,低相位抖动晶振,频率100MHz,电压3.3V,频率稳定性50ppm,工作温度0~70°C,尺寸5032mm,6G基站晶振,测试与测量设备晶振,服务器和存储系统晶振,专业视频设备晶振,FPGA/ASIC时钟生成晶振.



订购热线：0755-27838351
QQ咨询 点击这里给我发消息

1XG5032HAN100.000000MHzCJAA-差分晶体振荡器-6G基站晶振,日本爱普生晶振,XG5032HAN有源晶振,XG5032HAN100.000000MHzCJAA晶振,差分晶体振荡器,石英贴片晶振,HCSL输出晶振,耐高温晶振,低相位抖动晶振,频率100MHz,电压3.3V,频率稳定性50ppm,工作温度0~70°C,尺寸5032mm,6G基站晶振,测试与测量设备晶振,服务器和存储系统晶振,专业视频设备晶振,FPGA/ASIC时钟生成晶振.

XG5032HAN100.000000MHzCJAA-差分晶体振荡器-6G基站晶振 参数图

项目 符号 规格说明 条件
额定频率 f_nom 100MHz 请联系我们以便获取其它可用频率的相关信息
电源电压 Vcc 3.3V±0.33V
储存温度 T_stg -55℃~+125℃ 裸存
工作温度 T_use 0℃~ +70℃
频率稳定度 f_tol ±50 ppm +25℃,超出标准的规格说明请联系我们以便获取相关信息
电流消耗 f_tem 35mA Max OE=Vcc, L_LVDS = 100 Ω
禁用电流 I_dis 15mA Max OE=GND
对称性（占空比） SYM 45%~55% 在输出交叉点
输出电压 VOH 0.66V~0.85V
DC  charactenristics
VOL
±0.15 V
输出负载条件 L _HCSL 50Ω
As per measurement circuit below
输入电压 VIH 70%Vcc Min OE terminal
VIL 30%Vcc Max
起始时间 t str 10ms Max Time at minimum supply voltage to be 0
相位抖动 tpj 0.3ps Max
Offset frequency: 12 kHz to 20 MHz
老化 f_age
± 10× 10-6 / year Max.
+25 °C, First year,VCC=2.5 V, 3.3 V


3

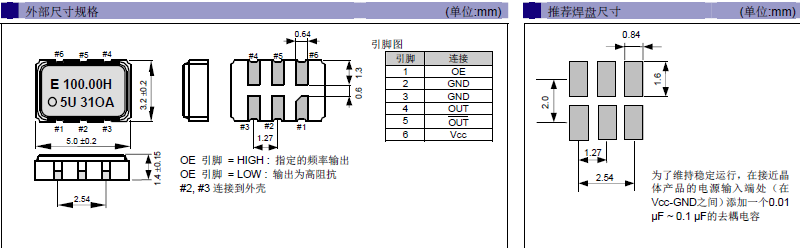

XG5032HAN100.000000MHzCJAA-差分晶体振荡器-6G基站晶振 尺寸图

XG5032HAN 5032 HCSL

编码 型号 频率 LxWxH/尺寸 输出方式 电源电压 工作温度 频率偏差
X1G0042610001 SG5032VAN 100.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042610002 SG5032VAN 125.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042610003 SG5032VAN 125.006250 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042610005 SG5032VAN 200.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042610006 SG5032VAN 156.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042610007 SG5032VAN 400.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042610008 SG5032VAN 106.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042610009 SG5032VAN 212.500000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042610010 SG5032VAN 74.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042610011 SG5032VAN 148.500000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042610012 SG5032VAN 75.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042610013 SG5032VAN 150.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042610015 SG5032VAN 312.500000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042610016 SG5032VAN 312.515625 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042610017 SG5032VAN 161.132800 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042610020 SG5032VAN 125.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042610021 SG5032VAN 125.006250 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042610023 SG5032VAN 100.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042610024 SG5032VAN 200.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042610025 SG5032VAN 400.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042610026 SG5032VAN 106.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042610027 SG5032VAN 212.500000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042610028 SG5032VAN 74.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042610029 SG5032VAN 148.500000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042610030 SG5032VAN 75.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042610031 SG5032VAN 150.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042610033 SG5032VAN 156.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042610034 SG5032VAN 312.500000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042610035 SG5032VAN 312.515625 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042610036 SG5032VAN 161.132800 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042610039 SG5032VAN 125.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042610040 SG5032VAN 125.006250 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042610042 SG5032VAN 100.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042610043 SG5032VAN 200.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042610044 SG5032VAN 400.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042610045 SG5032VAN 106.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042610046 SG5032VAN 212.500000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042610047 SG5032VAN 74.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042610048 SG5032VAN 148.500000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042610049 SG5032VAN 75.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042610050 SG5032VAN 150.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042610052 SG5032VAN 156.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042610053 SG5032VAN 312.500000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042610054 SG5032VAN 312.515625 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042610055 SG5032VAN 161.132800 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042610058 SG5032VAN 125.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042610059 SG5032VAN 125.006250 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042610061 SG5032VAN 100.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042610062 SG5032VAN 200.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042610063 SG5032VAN 400.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042610064 SG5032VAN 106.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042610065 SG5032VAN 212.500000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042610066 SG5032VAN 74.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042610067 SG5032VAN 148.500000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042610068 SG5032VAN 75.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042610069 SG5032VAN 150.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042610071 SG5032VAN 156.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042610072 SG5032VAN 312.500000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042610073 SG5032VAN 312.515625 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042610074 SG5032VAN 161.132800 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042610079 SG5032VAN 50.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042610080 SG5032VAN 68.750000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042610083 SG5032VAN 50.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042610084 SG5032VAN 68.750000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042610087 SG5032VAN 50.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042610088 SG5032VAN 68.750000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042610091 SG5032VAN 50.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042610092 SG5032VAN 68.750000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042610101 SG5032VAN 114.285000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042610102 SG5032VAN 250.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042610103 SG5032VAN 350.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042610104 SG5032VAN 80.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042610105 SG5032VAN 98.304000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042610106 SG5032VAN 122.880000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042610107 SG5032VAN 153.600000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042610108 SG5032VAN 307.200000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042610109 SG5032VAN 614.400000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042710001 SG5032EAN 125.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042710002 SG5032EAN 125.006250 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042710004 SG5032EAN 100.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042710005 SG5032EAN 200.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042710006 SG5032EAN 400.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042710007 SG5032EAN 106.250000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042710008 SG5032EAN 212.500000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042710009 SG5032EAN 74.250000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042710010 SG5032EAN 148.500000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042710011 SG5032EAN 75.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042710012 SG5032EAN 150.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042710013 SG5032EAN 155.520000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042710014 SG5032EAN 156.250000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042710015 SG5032EAN 312.500000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042710016 SG5032EAN 312.515625 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042710017 SG5032EAN 161.132800 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042710019 SG5032EAN 700.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042710020 SG5032EAN 125.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042710021 SG5032EAN 125.006250 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042710023 SG5032EAN 100.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042710024 SG5032EAN 200.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042710025 SG5032EAN 400.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042710026 SG5032EAN 106.250000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042710027 SG5032EAN 212.500000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042710028 SG5032EAN 74.250000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042710029 SG5032EAN 148.500000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042710030 SG5032EAN 75.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042710031 SG5032EAN 150.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042710032 SG5032EAN 155.520000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042710033 SG5032EAN 156.250000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042710034 SG5032EAN 312.500000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042710035 SG5032EAN 312.515625 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042710036 SG5032EAN 161.132800 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042710038 SG5032EAN 700.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042710039 SG5032EAN 125.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042710040 SG5032EAN 125.006250 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042710042 SG5032EAN 100.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042710043 SG5032EAN 200.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042710044 SG5032EAN 400.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042710045 SG5032EAN 106.250000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042710046 SG5032EAN 212.500000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042710047 SG5032EAN 74.250000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042710048 SG5032EAN 148.500000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042710049 SG5032EAN 75.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042710050 SG5032EAN 150.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042710052 SG5032EAN 156.250000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042710053 SG5032EAN 312.500000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042710054 SG5032EAN 312.515625 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042710055 SG5032EAN 161.132800 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042710058 SG5032EAN 125.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042710059 SG5032EAN 125.006250 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042710061 SG5032EAN 100.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042710062 SG5032EAN 200.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042710063 SG5032EAN 400.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042710064 SG5032EAN 106.250000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042710065 SG5032EAN 212.500000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042710066 SG5032EAN 74.250000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042710067 SG5032EAN 148.500000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042710068 SG5032EAN 75.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042710069 SG5032EAN 150.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042710071 SG5032EAN 156.250000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042710072 SG5032EAN 312.500000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042710073 SG5032EAN 312.515625 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042710074 SG5032EAN 161.132800 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042710079 SG5032EAN 50.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042710080 SG5032EAN 68.750000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042710083 SG5032EAN 50.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042710084 SG5032EAN 68.750000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042710087 SG5032EAN 50.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042710088 SG5032EAN 68.750000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042710091 SG5032EAN 50.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042710092 SG5032EAN 68.750000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042710102 SG5032EAN 669.325580 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042710107 SG5032EAN 114.285000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042710108 SG5032EAN 114.285000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042710109 SG5032EAN 250.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042710110 SG5032EAN 350.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042710111 SG5032EAN 80.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042710112 SG5032EAN 98.304000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042710113 SG5032EAN 161.132812 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042710115 SG5032EAN 133.330000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1M0004610001 XG5032HAN 100.000000 MHz 5.00 x 3.20 x 1.40 mm HCSL 2.375 to 2.625 V 0 to 70 °C +/-100 ppm
X1M0004610002 XG5032HAN 100.000000 MHz 5.00 x 3.20 x 1.40 mm HCSL 2.970 to 3.630 V 0 to 70 °C +/-50 ppm
X1M0004610003 XG5032HAN 100.000000 MHz 5.00 x 3.20 x 1.40 mm HCSL 2.970 to 3.630 V -5 to 85 °C +/-50 ppm
X1M0004610006 XG5032HAN 100.000000 MHz 5.00 x 3.20 x 1.40 mm HCSL 2.970 to 3.630 V -5 to 85 °C +/-100 ppm
XG5032HAN


精工富士晶振-康华尔正规渠道指定供应商

服务热线：0755-27838351

手机联系：138-2330-0879

Q Q联系：632862232

邮 箱：konuaer@163.com

地 址：广东深圳市宝安区宝安大道东95号浙商大厦1905

XG5032HAN100.000000MHzCJAA 差分晶体振荡器 6G基站晶振

采购：XG5032HAN100.000000MHzCJAA-差分晶体振荡器-6G基站晶振

  • *联系人：
  • *手机：
  • 公司名称：
  • 邮箱：
  • *采购意向：
  • *验证码：验证码

跟此产品相关的产品 / Related Products

500DSAA135M000ACFR,Si500D,5032mm,Skyworks光纤通信晶振
500DSAA135M000ACFR,Si500D,5032mm,Skyworks光纤通信晶振
500DSAA135M000ACFR,Si500D,5032mm,Skyworks光纤通信晶振，美国进口晶振，Skyworks晶振，思佳讯晶振，型号：Si500D系列SMD晶振，编码为：500DSAA135M000ACFR，频率为：135MHz，电压：1.8V，频率稳定性：±150ppm，工作温度范围：0℃至+70℃，小体积晶振尺寸：5.0x3.2mm封装，六脚贴片晶振，有源晶振，石英晶振，LVDS输出晶振，差分晶振，石英晶体振荡器。具有超小型，轻薄型，低抖动，低功耗，低损耗，低耗能，低电源电压，低电平等特点。被广泛用于：仪器设备晶振，无线网络晶振，路由器晶振，导航仪晶振，光纤通信晶振，安防设备等应用。
ELLS-13.560MHz-10-R35-A4Y-F-T,AEL通讯晶振,SMD石英晶体谐振器
ELLS-13.560MHz-10-R35-A4Y-F-T,AEL通讯晶振,SMD石英晶体谐振器
ELLS-13.560MHz-10-R35-A4Y-F-T,AEL通讯晶振,SMD石英晶体谐振器，AEL晶振，艾尔晶振，英国进口晶振，型号：ELLS系列晶振，编码为：ELLS-13.560MHz-10-R35-A4Y-F-T，频率为：13.56MHz，负载电容：10pF，频率稳定性：±30ppm，频率容差：±30ppm，工作温度范围：-10℃至+60℃，小体积晶振尺寸：12.7x4.7x4.2mm封装，两脚贴片晶振，无源晶振，椭圆形石英晶振，石英晶体谐振器，SMD晶体，无铅环保晶振。具有小体积，轻薄型，高性能，高品质，高可靠性等特点。被广泛应用于：通讯设备晶振，汽车电子晶振，智能家居晶振，无线蓝牙晶振，物联网晶振，安防设备等应用。
ABDFTCXO-24.576MHZ-L-2-T2,Abracon温补晶振,低电压晶振
ABDFTCXO-24.576MHZ-L-2-T2,Abracon温补晶振,低电压晶振
ABDFTCXO-24.576MHZ-L-2-T2,Abracon温补晶振,低电压晶振，美国进口晶振，Abracon晶振，艾博康晶振，型号：ABDFTCXO系列，编码为：ABDFTCXO-24.576MHZ-L-2-T2，频率：24.576MHz，电压：3.3V，频率稳定性：±280ppb，工作温度范围：-40℃至+85℃，LVCMOS输出TCXO温补晶振，小体积晶振尺寸：14.0x9.0x3.0mm封装，10垫脚贴片晶振，石英晶振，有源晶振，石英晶体振荡器。具有低抖动，低功耗，低耗能，低损耗，低电源电压，低电平等特点。应用程序：通信晶振，网络晶振，同步以太网晶振，IEEE1588，仪器晶振、测试和测量晶振，车载控制器晶振等应用。
康华尔产品中心 Product Center

精工晶振

富士晶振

雾化片

石英晶振

石英晶体振荡器

贴片晶振

32.768KHz晶振

欧美进口晶振

谐振器/滤波器

数码电子产品

汽车电子产品

新增进口品牌

温补晶振

差分晶振

恒温晶振

联系康华尔Contact us

咨询热线


0755-27838351

电话：0755-27838351

手机：138 2330 0879

QQ：632862232

邮箱： konuaer@163.com

地址：广东深圳市宝安区宝安大道东95号浙商大厦1905

首页精工晶振富士晶振石英晶体振荡器32.768K石英晶振常见问题行业新闻企业介绍联系我们网址地图

Copyright © 2016-2017

深圳市康华尔电子有限公司版权所有

备案号：粤ICP备17109239号
