501JCA100M000DAF,Si501,100MHz,2520mm,Silicon办公设备晶振
频率：100MHz

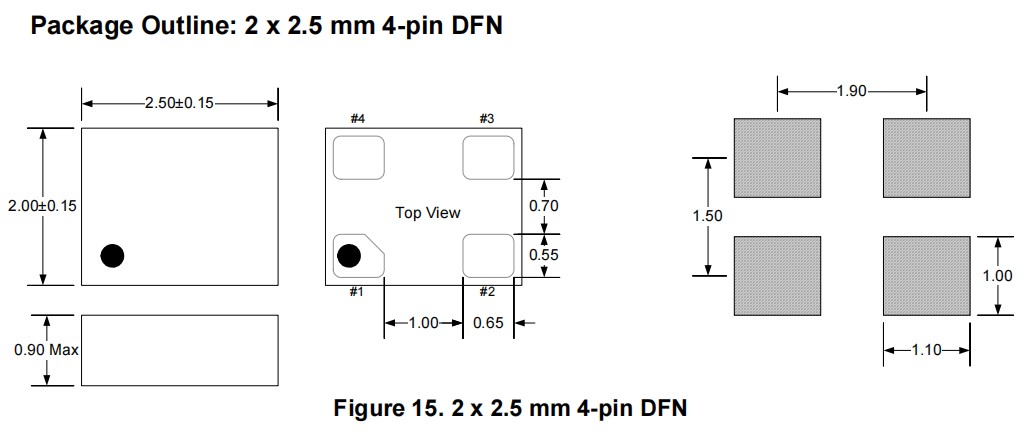

尺寸：2.5x2.0mm
501JCA100M000DAF,Si501,100MHz,2520mm,Silicon办公设备晶振，美国进口晶振，Silicon晶振，型号：Si501系列晶振，编码为：501JCA100M000DAF，频率：100MHz，电压：3.3V，精度：±20ppm，工作温度范围：-20℃至+70℃，小体积晶振尺寸：2.5x2.0mm封装，四脚贴片晶振，有源晶振，石英晶体振荡器。具有超小型，轻薄型，高精度，高性能，高品质等特点。应用程序：通用处理器，工业控制器，嵌入式控制器，机控制，流量控制，办公室/家庭自动化，IP摄像头/监控，显示和控制面板，户外电子设备，多功能打印机等。
订购热线：0755-27838351
501JCA100M000DAF,Si501,100MHz,2520mm,Silicon办公设备晶振，美国进口晶振，Silicon晶振，型号：Si501系列晶振，编码为：501JCA100M000DAF，频率：100MHz，电压：3.3V，精度：±20ppm，工作温度范围：-20℃至+70℃，小体积晶振尺寸：2.5x2.0mm封装，四脚贴片晶振，有源晶振，石英晶体振荡器。具有超小型，轻薄型，高精度，高性能，高品质等特点。应用程序：通用处理器，工业控制器，嵌入式控制器，机控制，流量控制，办公室/家庭自动化，IP摄像头/监控，显示和控制面板，户外电子设备，多功能打印机等。
贴片晶振Si501 CMEMS振荡器系列为传统的晶体振荡器提供了单片的，基于mems的IC替代品。硅实验室的CMEMS技术将标准CMOS+MEMS结合在一个单片IC集成电路中，提供集成、高质量和高可靠性的振荡器。每个设备都经过工厂测试和配置，以保证其在电压、工艺、温度、冲击、振动和老化等方面的性能。
501JCA100M000DAF,Si501,100MHz,2520mm,Silicon办公设备晶振,参数表
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | |||||||||||||||||
| Frequency Range |
FCLK | 100 | MHz | ||||||||||||||||||||
| Clock Period | TCLK | 1/FCLK | 31,250 | — | 10 | ns | |||||||||||||||||
| Total Stability1 | F STAB | –20 | — | +20 | ppm | ||||||||||||||||||
| –30 | — | +30 | ppm | ||||||||||||||||||||
| –50 | — | +50 | ppm | ||||||||||||||||||||
| Initial Accuracy |
FI | Measured at 25 。C at the time of shipping |
— | ±2 | — | ppm | |||||||||||||||||
| Startup Time2 | TSU | From V DD crossing 1.71 V to first clock output |
— | 2.5 | 4 | ms | |||||||||||||||||
| Resume Time3,4 |
T RUN | From Sleep mode | — | 2.5 | 5 | ms | |||||||||||||||||
| From Doze mode | — | 1.7 | 2.55 | ms | |||||||||||||||||||
| From Stop mode5 | — | — | 1.5 x TCLK + 35 |
ns | |||||||||||||||||||
| Output Disable Time3,4 |
TD | To Sleep/Doze mode, from output running |
— | — | 225 | µs | |||||||||||||||||
| To Stop, from output running | — | — | 1.5 x TCLK + 35 |
ns | |||||||||||||||||||
| Frequency Update Time4,6 |
T NEW_FREQ | — | — | 5 | ms |
||||||||||||||||||
| 原厂代码 | 进口晶振 | 型号 | 频率 | 电压 | 频率稳定度 | 包装/封装 |
| 501JCA100M000CAG | Silicon晶振 | Si501 | 100MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA100M000BAG | Silicon晶振 | Si501 | 100MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JAA24M0000DAF | Silicon晶振 | Si501 | 24MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501BAA16M0000DAF | Silicon晶振 | Si501 | 16MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JAA24M0000CAF | Silicon晶振 | Si501 | 24MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JAA40M0000CAF | Silicon晶振 | Si501 | 40MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JAA25M0000BAF | Silicon晶振 | Si501 | 25MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501BAA50M0000BAF | Silicon晶振 | Si501 | 50MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JCA24M0000DAF | Silicon晶振 | Si501 | 24MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501BCA16M0000BAF | Silicon晶振 | Si501 | 16MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA24M0000CAF | Silicon晶振 | Si501 | 24MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JAA25M0000BAG | Silicon晶振 | Si501 | 25MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501BCA16M0000CAF | Silicon晶振 | Si501 | 16MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501BAA16M0000BAG | Silicon晶振 | Si501 | 16MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501BAA16M0000CAG | Silicon晶振 | Si501 | 16MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JAA24M0000BAG | Silicon晶振 | Si501 | 24MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JAA40M0000BAG | Silicon晶振 | Si501 | 40MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JCA10M0000BAF | Silicon晶振 | Si501 | 10MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA25M0000CAF | Silicon晶振 | Si501 | 25MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA10M0000BAG | Silicon晶振 | Si501 | 10MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA20M0000CAG | Silicon晶振 | Si501 | 20MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501BCA16M0000BAG | Silicon晶振 | Si501 | 16MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501BCA16M0000CAG | Silicon晶振 | Si501 | 16MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA100M000DAF | Silicon晶振 | Si501 | 100MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA100M000CAF | Silicon晶振 | Si501 | 100MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA100M000BAF | 石英晶体 | Si501 | 100MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA10M0000CAF | Silicon晶振 | Si501 | 10MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA10M0000CAG | Silicon晶振 | Si501 | 10MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA10M0000DAF | Silicon晶振 | Si501 | 10MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA10M0000DAG | Silicon晶振 | Si501 | 10MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501BCA16M0000DAF | Silicon晶振 | Si501 | 16MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501BCA16M0000DAG | Silicon晶振 | Si501 | 16MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501BAA16M0000BAF | Silicon晶振 | Si501 | 16MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501BAA16M0000CAF | Silicon晶振 | Si501 | 16MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501BAA16M0000DAG | Silicon晶振 | Si501 | 16MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JCA20M0000BAF | Silicon晶振 | Si501 | 20MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA20M0000BAG | Silicon晶振 | Si501 | 20MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA20M0000CAF | Silicon晶振 | Si501 | 20MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA20M0000DAF | Silicon晶振 | Si501 | 20MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA20M0000DAG | Silicon晶振 | Si501 | 20MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JAA24M0000BAF | Silicon晶振 | Si501 | 24MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JAA24M0000CAG | Silicon晶振 | Si501 | 24MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JAA24M0000DAG | Silicon晶振 | Si501 | 24MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JCA24M0000BAF | Silicon晶振 | Si501 | 24MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA24M0000BAG | Silicon晶振 | Si501 | 24MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA24M0000CAG | Silicon晶振 | Si501 | 24MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA24M0000DAG | Silicon晶振 | Si501 | 24MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JAA25M0000CAF | Silicon晶振 | Si501 | 25MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JAA25M0000CAG | Silicon晶振 | Si501 | 25MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JAA25M0000DAF | Silicon晶振 | Si501 | 25MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JAA25M0000DAG | Silicon晶振 | Si501 | 25MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JCA25M0000BAF | Silicon晶振 | Si501 | 25MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA25M0000BAG | Silicon晶振 | Si501 | 25MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA25M0000CAG | Silicon晶振 | Si501 | 25MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA25M0000DAF | Silicon晶振 | Si501 | 25MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
