SUNTSU晶振,SXT214晶振,SXT21410BA38-27.120M,6G通信设备晶振
频率：27.12MHz
尺寸：2.0×1.6mm
SUNTSU晶振,SXT214晶振,SXT21410BA38-27.120M,6G通信设备晶振,SUNTSU晶振,SXT214贴片晶振,SXT21410BA38-27.120M晶振,2016石英晶振,进口无源晶振,频率27.12MHz,负载10pF,频率偏差30ppm,工作温度-30~85°C,耐高温晶振,小体积晶振,6G通信设备晶振,办公自动化晶振,视觉蓝牙晶振,SSD应用晶振.
订购热线：0755-27838351
SUNTSU晶振,SXT214晶振,SXT21410BA38-27.120M,6G通信设备晶振,SUNTSU晶振,SXT214贴片晶振,SXT21410BA38-27.120M晶振,2016石英晶振,进口无源晶振,频率27.12MHz,负载10pF,频率偏差30ppm,工作温度-30~85°C,耐高温晶振,小体积晶振,6G通信设备晶振,办公自动化晶振,视觉蓝牙晶振,SSD应用晶振.
SUNTSU晶振,SXT214晶振,SXT21410BA38-27.120M,6G通信设备晶振特点：
•±10 ppm /±10 ppm(公差/稳定)可用
•超小型封装
•AT-Cut基本原理
•磁带和卷轴

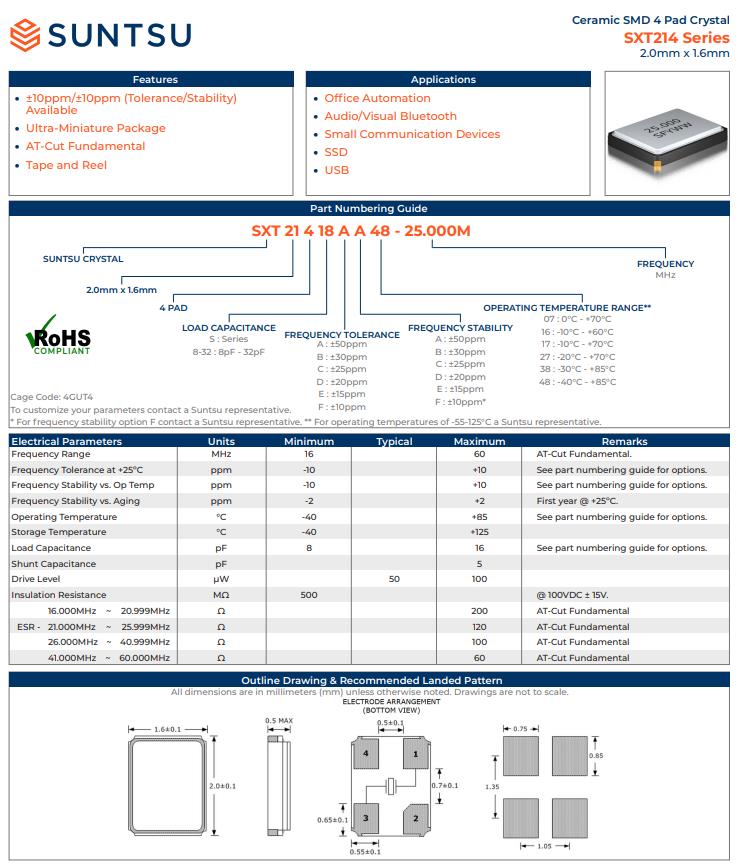

SUNTSU晶振,SXT214晶振,SXT21410BA38-27.120M,6G通信设备晶振参数图
| 项目 | 符号 | 数值 |
| 频率 | f0 | 27.12MHz |
| 频率公差 | △ f/f0 | ±30ppm |
| 温度稳定性 | TC | ±50ppm |
| 并联电容 | CO | 3pF Max |
| 负载电容 | CL | 10pF |
| 工作温度 | TOPR | -30℃～＋85℃ |
| 保存温度 | TSTR | －40℃～＋125℃ |
| 串联阻力 | R1 | 100Ω Max |
| 驱动级别 | DL | 100μW Max |
| 老化（第一年） | △ f/f0 | ±2ppm Max. |

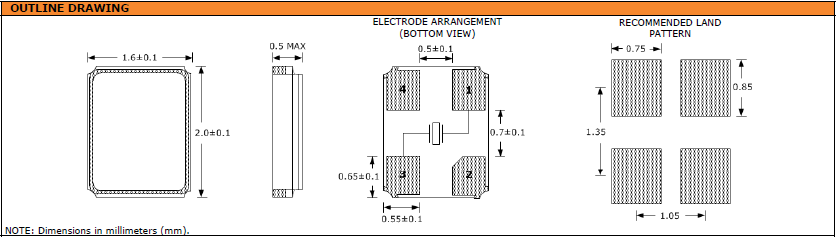

SUNTSU晶振,1612mm晶振,SXT11410AA07-38.400M,6G相关设备晶振尺寸图
| SUNTSU晶振编码 | 尺寸 | 负载 | 频率公差 | 频率稳定度 | 工作温度 | 频率 |
| SXT21410AA07-16.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 16.000M |
| SXT21410AA07-16.384M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 16.384M |
| SXT21410AA07-18.432M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 18.432M |
| SXT21410AA07-20.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 20.000M |
| SXT21410AA07-22.1184M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 22.1184M |
| SXT21410AA07-24.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 24.000M |
| SXT21410AA07-24.576M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 24.576M |
| SXT21410AA07-25.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 25.000M |
| SXT21410AA07-26.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 26.000M |
| SXT21410AA07-27.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 27.000M |
| SXT21410AA07-27.120M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 27.120M |
| SXT21410AA07-30.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 30.000M |
| SXT21410AA07-32.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 32.000M |
| SXT21410AA07-37.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 37.400M |
| SXT21410AA07-38.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 38.400M |
| SXT21410AA07-40.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 40.000M |
| SXT21410AA07-48.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 48.000M |
| SXT21410AA07-50.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 50.000M |
| SXT21410AA07-52.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 52.000M |
| SXT21410AA16-16.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 16.000M |
| SXT21410AA16-16.384M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 16.384M |
| SXT21410AA16-18.432M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 18.432M |
| SXT21410AA16-20.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 20.000M |
| SXT21410AA16-22.1184M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 22.1184M |
| SXT21410AA16-24.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 24.000M |
| SXT21410AA16-24.576M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 24.576M |
| SXT21410AA16-25.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 25.000M |
| SXT21410AA16-26.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 26.000M |
| SXT21410AA16-27.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 27.000M |
| SXT21410AA16-27.120M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 27.120M |
| SXT21410AA16-30.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 30.000M |
| SXT21410AA16-32.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 32.000M |
| SXT21410AA16-37.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 37.400M |
| SXT21410AA16-38.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 38.400M |
| SXT21410AA16-40.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 40.000M |
| SXT21410AA16-48.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 48.000M |
| SXT21410AA16-50.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 50.000M |
| SXT21410AA16-52.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 52.000M |
| SXT21410AA17-16.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +70°C | 16.000M |
| SXT21410AA17-16.384M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +70°C | 16.384M |
| SXT21410AA17-18.432M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +70°C | 18.432M |
| SXT21410AA17-20.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +70°C | 20.000M |
| SXT21410AA17-22.1184M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +70°C | 22.1184M |
| SXT21410AA17-24.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +70°C | 24.000M |
| SXT21410AA17-24.576M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +70°C | 24.576M |
| SXT21410AA17-25.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +70°C | 25.000M |
| SXT21410AA17-26.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +70°C | 26.000M |
| SXT21410AA17-27.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +70°C | 27.000M |
| SXT21410AA17-27.120M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +70°C | 27.120M |
| SXT21410AA17-30.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +70°C | 30.000M |
| SXT21410AA17-32.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +70°C | 32.000M |
| SXT21410AA17-37.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +70°C | 37.400M |
| SXT21410AA17-38.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +70°C | 38.400M |
| SXT21410AA17-40.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +70°C | 40.000M |
| SXT21410AA17-48.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +70°C | 48.000M |
| SXT21410AA17-50.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +70°C | 50.000M |
| SXT21410AA17-52.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +70°C | 52.000M |
| SXT21410AA27-16.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20°C - +70°C | 16.000M |
| SXT21410AA27-16.384M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20°C - +70°C | 16.384M |
| SXT21410AA27-18.432M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20°C - +70°C | 18.432M |
| SXT21410AA27-20.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20°C - +70°C | 20.000M |
| SXT21410AA27-22.1184M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20°C - +70°C | 22.1184M |
| SXT21410AA27-24.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20°C - +70°C | 24.000M |
| SXT21410AA27-24.576M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20°C - +70°C | 24.576M |
| SXT21410AA27-25.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20°C - +70°C | 25.000M |
| SXT21410AA27-26.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20°C - +70°C | 26.000M |
| SXT21410AA27-27.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20°C - +70°C | 27.000M |
| SXT21410AA27-27.120M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20°C - +70°C | 27.120M |
| SXT21410AA27-30.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20°C - +70°C | 30.000M |
| SXT21410AA27-32.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20°C - +70°C | 32.000M |
| SXT21410AA27-37.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20°C - +70°C | 37.400M |
| SXT21410AA27-38.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20°C - +70°C | 38.400M |
| SXT21410AA27-40.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20°C - +70°C | 40.000M |
| SXT21410AA27-48.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20°C - +70°C | 48.000M |
| SXT21410AA27-50.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20°C - +70°C | 50.000M |
| SXT21410AA27-52.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20°C - +70°C | 52.000M |
| SXT21410AA38-16.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30°C - +85°C | 16.000M |
| SXT21410AA38-16.384M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30°C - +85°C | 16.384M |
| SXT21410AA38-18.432M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30°C - +85°C | 18.432M |
| SXT21410AA38-20.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30°C - +85°C | 20.000M |
| SXT21410AA38-22.1184M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30°C - +85°C | 22.1184M |
| SXT21410AA38-24.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30°C - +85°C | 24.000M |
| SXT21410AA38-24.576M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30°C - +85°C | 24.576M |
| SXT21410AA38-25.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30°C - +85°C | 25.000M |
| SXT21410AA38-26.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30°C - +85°C | 26.000M |
| SXT21410AA38-27.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30°C - +85°C | 27.000M |
| SXT21410AA38-27.120M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30°C - +85°C | 27.120M |
| SXT21410AA38-30.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30°C - +85°C | 30.000M |
| SXT21410AA38-32.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30°C - +85°C | 32.000M |
| SXT21410AA38-37.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30°C - +85°C | 37.400M |
| SXT21410AA38-38.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30°C - +85°C | 38.400M |
| SXT21410AA38-40.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30°C - +85°C | 40.000M |
| SXT21410AA38-48.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30°C - +85°C | 48.000M |
| SXT21410AA38-50.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30°C - +85°C | 50.000M |
| SXT21410AA38-52.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30°C - +85°C | 52.000M |
| SXT21410AA48-16.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 16.000M |
| SXT21410AA48-16.384M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 16.384M |
| SXT21410AA48-18.432M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 18.432M |
| SXT21410AA48-20.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 20.000M |
| SXT21410AA48-22.1184M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 22.1184M |
| SXT21410AA48-24.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 24.000M |
| SXT21410AA48-24.576M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 24.576M |
| SXT21410AA48-25.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 25.000M |
| SXT21410AA48-26.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 26.000M |
| SXT21410AA48-27.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 27.000M |
| SXT21410AA48-27.120M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 27.120M |
| SXT21410AA48-30.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 30.000M |
| SXT21410AA48-32.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 32.000M |
| SXT21410AA48-37.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 37.400M |
| SXT21410AA48-38.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 38.400M |
| SXT21410AA48-40.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 40.000M |
| SXT21410AA48-48.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 48.000M |
| SXT21410AA48-50.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 50.000M |
| SXT21410AA48-52.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 52.000M |
| SXT21410BA07-16.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 16.000M |
| SXT21410BA07-16.384M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 16.384M |
| SXT21410BA07-18.432M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 18.432M |
| SXT21410BA07-20.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 20.000M |
| SXT21410BA07-22.1184M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 22.1184M |
| SXT21410BA07-24.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 24.000M |
| SXT21410BA07-24.576M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 24.576M |
| SXT21410BA07-25.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 25.000M |
| SXT21410BA07-26.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 26.000M |
| SXT21410BA07-27.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 27.000M |
| SXT21410BA07-27.120M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 27.120M |
| SXT21410BA07-30.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 30.000M |
| SXT21410BA07-32.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 32.000M |
| SXT21410BA07-37.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 37.400M |
| SXT21410BA07-38.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 38.400M |
| SXT21410BA07-40.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 40.000M |
| SXT21410BA07-48.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 48.000M |
| SXT21410BA07-50.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 50.000M |
| SXT21410BA16-16.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +60°C | 16.000M |
| SXT21410BA16-16.384M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +60°C | 16.384M |
| SXT21410BA16-18.432M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +60°C | 18.432M |
| SXT21410BA16-20.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +60°C | 20.000M |
| SXT21410BA16-22.1184M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +60°C | 22.1184M |
| SXT21410BA16-24.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +60°C | 24.000M |
| SXT21410BA16-24.576M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +60°C | 24.576M |
| SXT21410BA16-25.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +60°C | 25.000M |
| SXT21410BA16-26.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +60°C | 26.000M |
| SXT21410BA16-27.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +60°C | 27.000M |
| SXT21410BA16-27.120M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +60°C | 27.120M |
| SXT21410BA16-30.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +60°C | 30.000M |
| SXT21410BA16-32.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +60°C | 32.000M |
| SXT21410BA16-37.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +60°C | 37.400M |
| SXT21410BA16-38.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +60°C | 38.400M |
| SXT21410BA16-40.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +60°C | 40.000M |
| SXT21410BA16-48.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +60°C | 48.000M |
| SXT21410BA16-50.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +60°C | 50.000M |
| SXT21410BA17-16.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +70°C | 16.000M |
| SXT21410BA17-16.384M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +70°C | 16.384M |
| SXT21410BA17-18.432M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +70°C | 18.432M |
| SXT21410BA17-20.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +70°C | 20.000M |
| SXT21410BA17-22.1184M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +70°C | 22.1184M |
| SXT21410BA17-24.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +70°C | 24.000M |
| SXT21410BA17-24.576M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +70°C | 24.576M |
| SXT21410BA17-25.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +70°C | 25.000M |
| SXT21410BA17-26.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +70°C | 26.000M |
| SXT21410BA17-27.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +70°C | 27.000M |
| SXT21410BA17-27.120M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +70°C | 27.120M |
| SXT21410BA17-30.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +70°C | 30.000M |
| SXT21410BA17-32.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +70°C | 32.000M |
| SXT21410BA17-37.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +70°C | 37.400M |
| SXT21410BA17-38.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +70°C | 38.400M |
| SXT21410BA17-40.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +70°C | 40.000M |
| SXT21410BA17-48.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +70°C | 48.000M |
| SXT21410BA17-50.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +70°C | 50.000M |
| SXT21410BA27-16.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -20°C - +70°C | 16.000M |
| SXT21410BA27-16.384M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -20°C - +70°C | 16.384M |
| SXT21410BA27-18.432M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -20°C - +70°C | 18.432M |
| SXT21410BA27-20.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -20°C - +70°C | 20.000M |
| SXT21410BA27-22.1184M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -20°C - +70°C | 22.1184M |
| SXT21410BA27-24.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -20°C - +70°C | 24.000M |
| SXT21410BA27-24.576M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -20°C - +70°C | 24.576M |
| SXT21410BA27-25.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -20°C - +70°C | 25.000M |
| SXT21410BA27-26.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -20°C - +70°C | 26.000M |
| SXT21410BA27-27.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -20°C - +70°C | 27.000M |
| SXT21410BA27-27.120M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -20°C - +70°C | 27.120M |
| SXT21410BA27-30.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -20°C - +70°C | 30.000M |
| SXT21410BA27-32.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -20°C - +70°C | 32.000M |
| SXT21410BA27-37.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -20°C - +70°C | 37.400M |
| SXT21410BA27-38.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -20°C - +70°C | 38.400M |
| SXT21410BA27-40.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -20°C - +70°C | 40.000M |
| SXT21410BA27-48.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -20°C - +70°C | 48.000M |
| SXT21410BA27-50.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -20°C - +70°C | 50.000M |
| SXT21410BA38-16.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -30°C - +85°C | 16.000M |
| SXT21410BA38-16.384M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -30°C - +85°C | 16.384M |
| SXT21410BA38-18.432M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -30°C - +85°C | 18.432M |
| SXT21410BA38-20.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -30°C - +85°C | 20.000M |
| SXT21410BA38-22.1184M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -30°C - +85°C | 22.1184M |
| SXT21410BA38-24.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -30°C - +85°C | 24.000M |
| SXT21410BA38-24.576M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -30°C - +85°C | 24.576M |
| SXT21410BA38-25.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -30°C - +85°C | 25.000M |
| SXT21410BA38-26.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -30°C - +85°C | 26.000M |
| SXT21410BA38-27.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -30°C - +85°C | 27.000M |
| SXT21410BA38-27.120M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -30°C - +85°C | 27.120M |
| SXT21410BA38-30.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -30°C - +85°C | 30.000M |
| SXT21410BA38-32.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -30°C - +85°C | 32.000M |
| SXT21410BA38-37.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -30°C - +85°C | 37.400M |
| SXT21410BA38-38.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -30°C - +85°C | 38.400M |
| SXT21410BA38-40.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -30°C - +85°C | 40.000M |
| SXT21410BA38-48.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -30°C - +85°C | 48.000M |
| SXT21410BA38-50.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -30°C - +85°C | 50.000M |
| SXT21410BA48-16.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -40°C - +85°C | 16.000M |
| SXT21410BA48-16.384M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -40°C - +85°C | 16.384M |
| SXT21410BA48-18.432M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -40°C - +85°C | 18.432M |
| SXT21410BA48-20.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -40°C - +85°C | 20.000M |
| SXT21410BA48-22.1184M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -40°C - +85°C | 22.1184M |
| SXT21410BA48-24.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -40°C - +85°C | 24.000M |
| SXT21410BA48-24.576M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -40°C - +85°C | 24.576M |
| SXT21410BA48-25.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -40°C - +85°C | 25.000M |
| SXT21410BA48-26.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -40°C - +85°C | 26.000M |
| SXT21410BA48-27.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -40°C - +85°C | 27.000M |
精工富士晶振-康华尔正规渠道指定供应商
服务热线：0755-27838351
手机联系：138-2330-0879
Q Q联系：632862232
邮 箱：konuaer@163.com
地 址：广东深圳市宝安区宝安大道东95号浙商大厦1905
采购：SUNTSU晶振,SXT214晶振,SXT21410BA38-27.120M,6G通信设备晶振
- *联系人：
- *手机：
- 公司名称：
- 邮箱：
- *采购意向：
-
*验证码：
跟此产品相关的产品 / Related Products
- 501JCA100M000DAF,Si501,100MHz,2520mm,Silicon办公设备晶振
- 501JCA100M000DAF,Si501,100MHz,2520mm,Silicon办公设备晶振，美国进口晶振，Silicon晶振，型号：Si501系列晶振，编码为：501JCA100M000DAF，频率：100MHz，电压：3.3V，精度：±20ppm，工作温度范围：-20℃至+70℃，小体积晶振尺寸：2.5x2.0mm封装，四脚贴片晶振，有源晶振，石英晶体振荡器。具有超小型，轻薄型，高精度，高性能，高品质等特点。应用程序：通用处理器，工业控制器，嵌入式控制器，机控制，流量控制，办公室/家庭自动化，IP摄像头/监控，显示和控制面板，户外电子设备，多功能打印机等。
- 276服务器系列贴片晶振,Oscilent电脑主板晶振,276-33.8688M-18-P-TR高精度晶振
- 276服务器系列贴片晶振,Oscilent电脑主板晶振,276-33.8688M-18-P-TR高精度晶振，美国Oscilent晶振公司，奥斯康利晶振，5032晶振，276晶振，276-27.12M-12-L-TR晶振，超薄型晶振，低损耗晶振，石英晶振，欧美进口晶振，高品质晶振，北斗卫星定位模块晶振，无人机晶振，6G无线网晶振，高精度晶振，贴片晶振，无源晶振，高精度晶振，6G通讯设备晶振，无线传输晶振，局域网晶振，小体积晶振，低损耗晶振 。特点，成本效益，低配置，节省空间的设计，磁带和卷轴，符合RoHs/无铅标准。
- 151-16.0M-20-W高精度晶振,美国奥斯康利49S晶振,151无人机遥控晶振
- 151-16.0M-20-W高精度晶振,美国奥斯康利49S晶振,151无人机遥控晶振，美国Oscilent晶振公司，奥斯康利晶振，151晶振，151-16.0M-20-W晶振，特点:行业标准封装，宽频率范围，低轮廓，卓越的可靠性/老化，“AT带”毛坯技术，成本效益，符合RoHs/无铅标准，插件晶振，49S晶振，无源晶振，汽车晶振，小型晶振，低损耗晶振，石英晶振，欧美进口晶振，高品质晶振，北斗卫星定位模块晶振，无人机晶振，6G无线网晶振，高精度晶振，贴片晶振，无源晶振，高精度晶振，6G通讯设备晶振，无线传输晶振，局域网晶振，小体积晶振，低损耗晶振 。
康华尔产品中心
Product Center
联系康华尔Contact us
咨询热线
0755-27838351
电话：0755-27838351
手机：138 2330 0879
QQ：632862232
邮箱： konuaer@163.com
地址：广东深圳市宝安区宝安大道东95号浙商大厦1905
康华尔公众号
